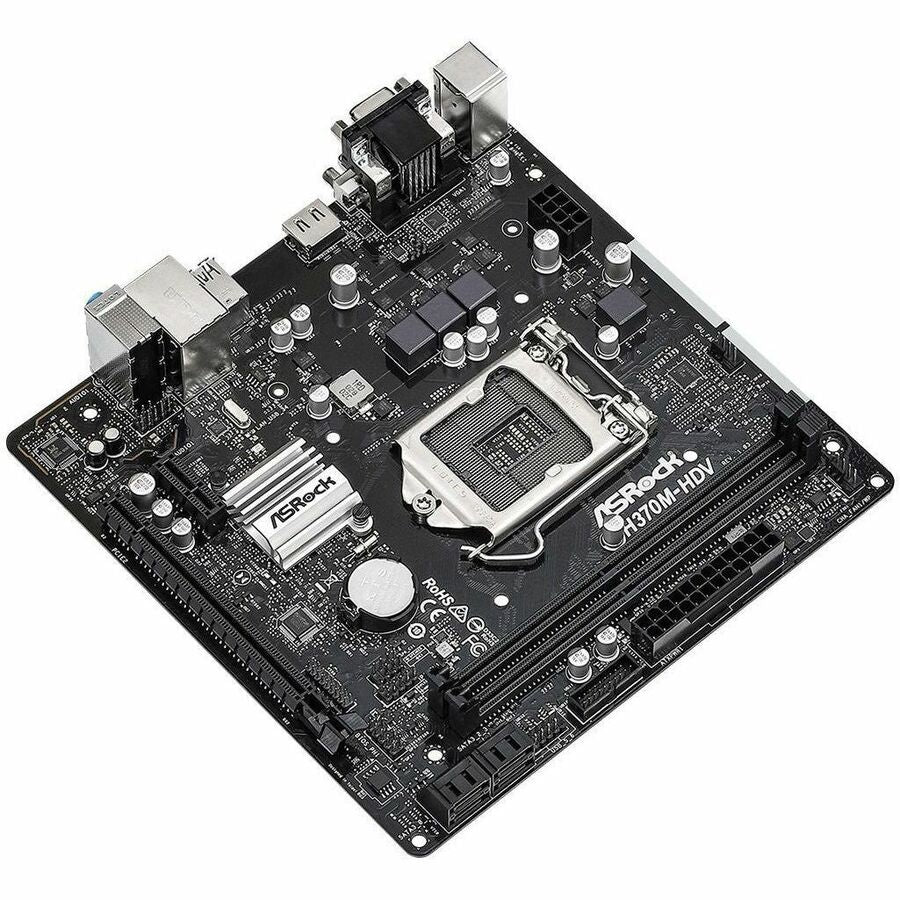

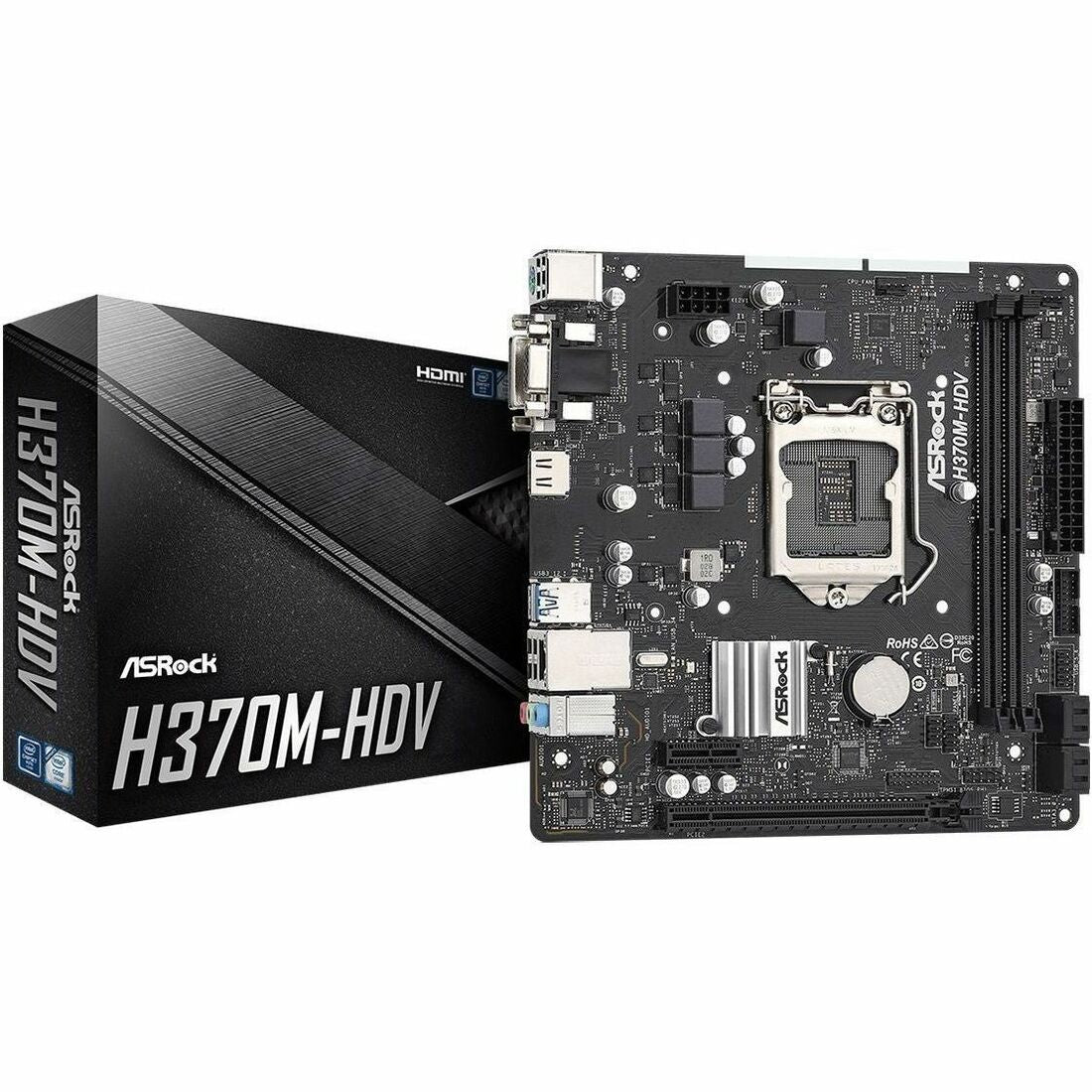

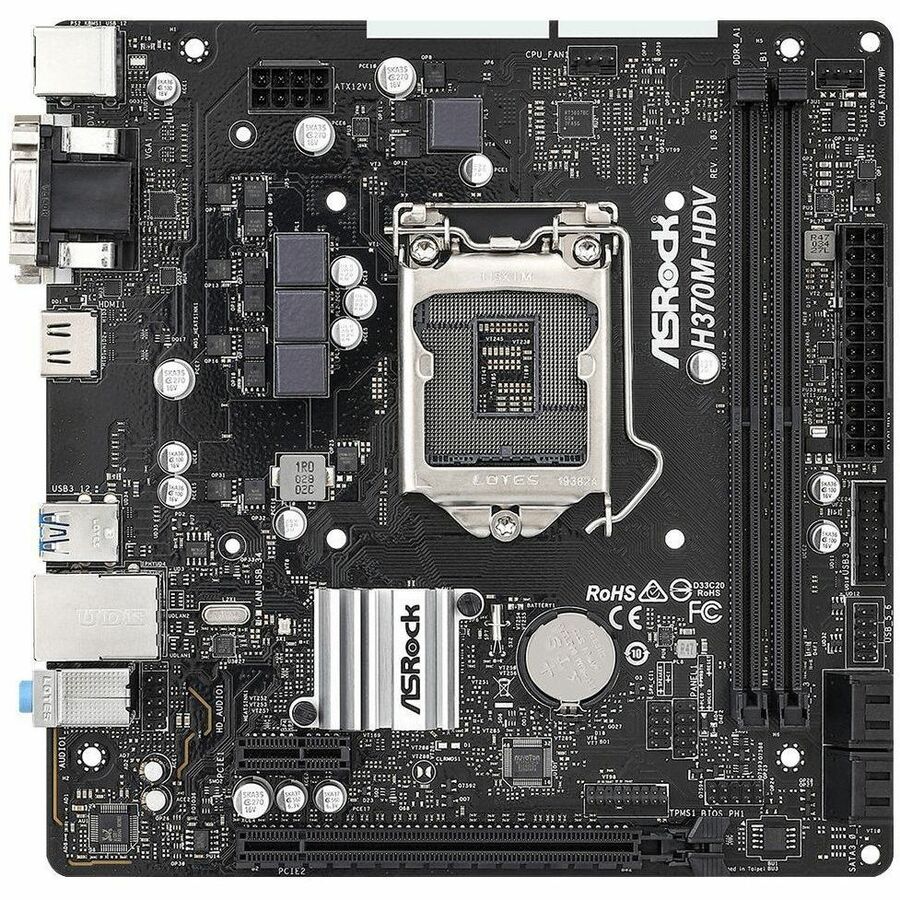

ASRock H370M-HDV Desktop Motherboard - Intel H370 Chipset

ASRock H370M-HDV Desktop Motherboard - Intel H370 Chipset - Socket H4 LGA-1151 - Micro ATX

4 x USB3.2 Gen1

Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen1 technology advances the data transfer rate up to 5Gb/s. ASRock provides 4 x USB 3.2 Gen1 ports onboard allows you to have a stunning data transfer experience.

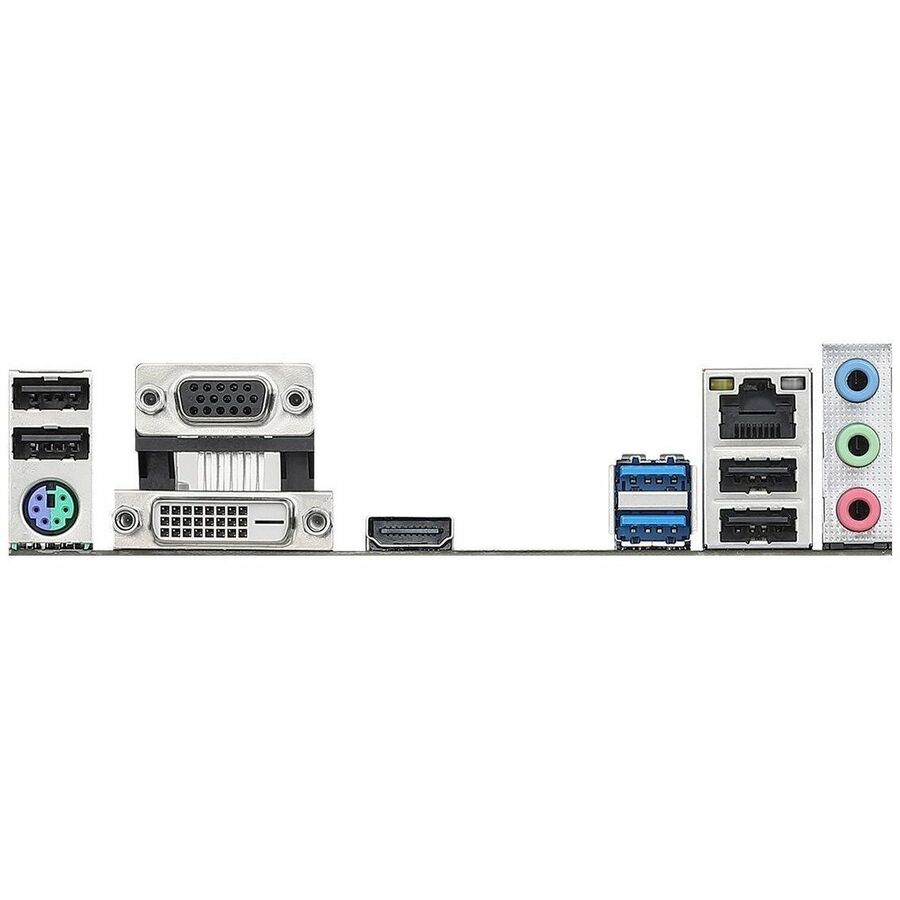

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

HEVC 10-bit Decoding/Encoding

Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Triple Monitor

Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Features

• Supports 9^thand 8^thGen Intel^®Core™ Processors
• 4 Power Phase design
• 2 DIMMs, Up to DDR4 2666 MHz
• 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
• Graphics Output Options: D-Sub, DVI-D, HDMI
• 7.1 CH HD Audio (Realtek 887/897 Audio Codec)
• 4 x SATA3
• 4 x USB 3.2 Gen1 (2 Front, 2 Rear)
• 6 x USB 2.0 (2 Front, 4 Rear)
• Realtek Gigabit LAN

Technical Information:

• Chipset Manufacturer: Intel
• Chipset Model: H370
• Total Processor Supported: 1
• Processor Socket: Socket H4 LGA-1151
• Processor Generation Supported
  • 8th
  • 9th
• Processor Supported: Core
• Number of Memory Slots: 2
• Memory Form Factor
  • DIMM
  • UDIMM
• Maximum Memory Supported: 64 GB
• Memory Technology: DDR4 SDRAM
• Memory Speed Supported
  • 2666 MHz
  • 2400 MHz
  • 2133 MHz
• Controller Type: Serial ATA/600
• RAID Supported: Yes
• RAID Levels
  • 0
  • 1
  • 5
  • 10
• Onboard Video: CPU Dependent Video
• Audio Channels: 7.1
• Gigabit Ethernet: Yes
• PCI Express Standard: PCI Express 3.0
• Total Number of PCI Express Slots: 2
• Number of PCI Express x1 Slots: 1
• Number of PCI Express x16 Slots: 1
• Total Number of USB Ports: 6
• Number of USB 2.0 Ports: 4
• Number of USB 3.2 Gen 1 Ports: 2
• VGA: Yes
• HDMI: Yes
• HDMI Version: 1.4
• DVI: Yes
• Number of Network (RJ-45) Ports: 1
• Number of M.2 Interfaces: 1
• Total Number of Onboard USB Ports: 4
• Number of Onboard USB 2.0 Ports: 2
• Form Factor: Micro ATX
• Width: 7.5"
• Depth: 7.4"
• Package Contents
  • H370M-HDV Desktop Motherboard
  • Quick Installation Guide
  • Support CD
  • I/O Shield
  • 2 x SATA Data Cables
• Energy Efficiency Compliance
  • Energy-related Products Directive Ready (ErP Ready)
  • Energy-using Products Directive Ready (EuP Ready)
• Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
  • Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
