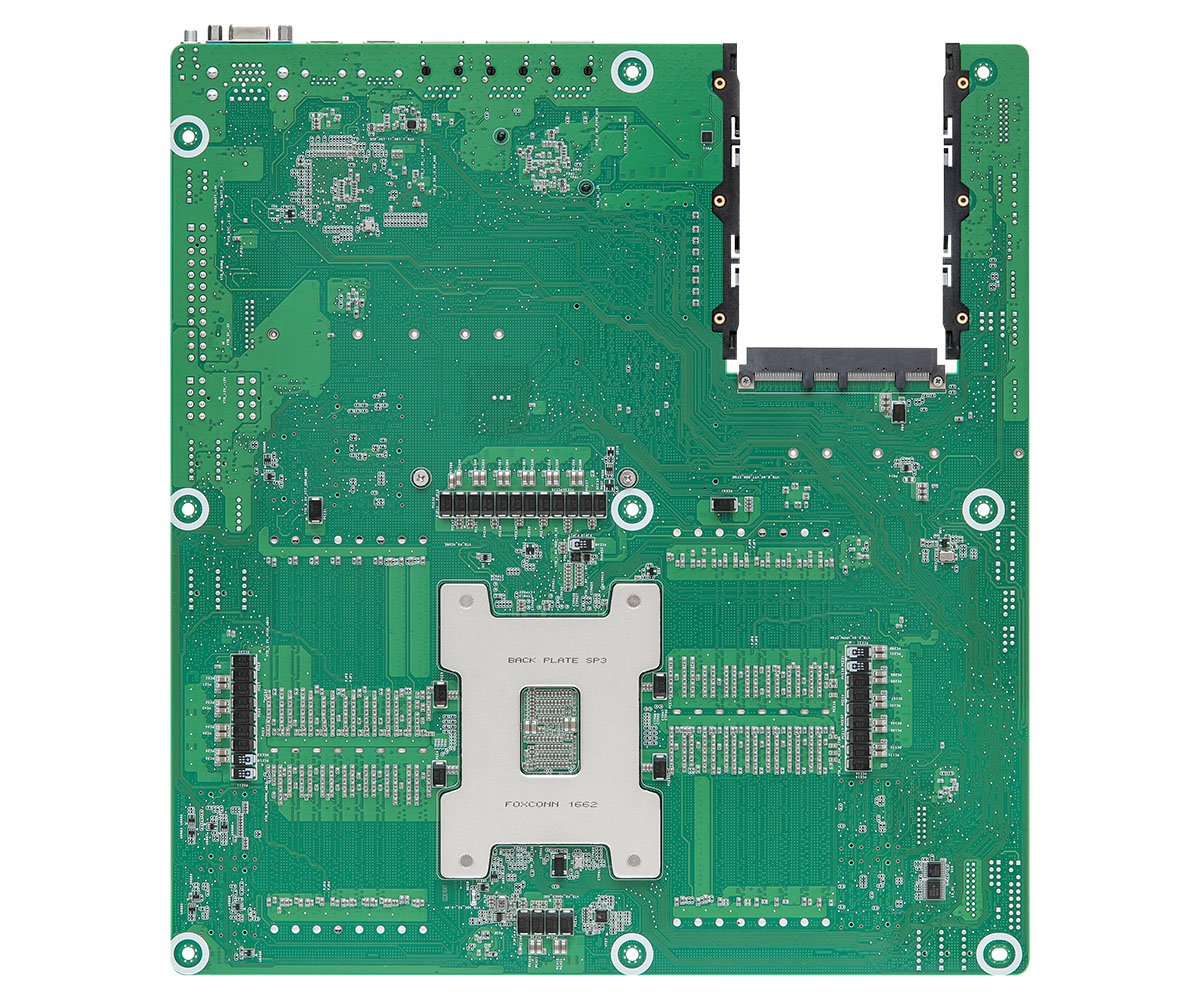

Asrock ROMED16QM3 EEB 12 inch x 13 inch Single Socket SP3 LGA4094 SoC Chipset Server Motherboard

• Physical Status
  • Form Factor: EEB
  • Dimensions: 12" x 13"
• Processor System
  • CPU: Supports AMD EPYC 7003 (with AMD 3D V-Cache Technology)/7002 Series Processors
  • Socket: Single Socket SP3 (LGA4094)
  • Chipset: System on Chip
• System Memory
  • Supported DIMM Quantity: 16 DIMM slots (2DPC)
  • Supported Type: Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, NVDIMM-N
  • Max. Capacity per DIMM: RDIMM: up to 64GB
  • LRDIMM: up to 128GB
  • RDIMM/LRDIMM-3DS: up to 256GB
  • NVDIMM-N: up to 32GB
  • Max. DIMM Frequency: RDIMM/ LRDIMM/NVDIMM-N: max. 3200MHz
  • Voltage: 1.2V
• PCIe Expansion Slots (SLOT7 close to CPU)
  • PCIe x 16: SLOT7: PCIe4.0 x8
  • SLOT6: PCIe4.0 x8
• Other PCIe Expansion Connectors
  • M.2 slot: 2 M-key (PCIe4.0 x4 or 4 SATA 6Gb/s); support 22110/2280/2260/2242/2230 form factors
  • Others:
  • 10 low-profile SlimSAS (PCIe4.0 x8)
  • 2 low-profile SlimSAS (PCIe4.0 x8 or 8 SATA 6Gb/s)
• SATA/SAS Storage
  • PCH Built-in Storage: AMD EPYC 7003/ 7002 (24 SATA 6Gb/s):
  • 2 SlimSAS, 2 M.2
• Ethernet
  • Additional GbE Controller: 1 Intel i350-AM2: 2 RJ45 (1GbE)
  • OCP slot: 1 OCP NIC 3.0 (PCIe4.0 x16)
• Server Management
  • BMC Controller: ASPEED AST2500
  • IPMI Dedicated GLAN: 1 x Realtek RTL8211E for dedicated management GLAN
• Graphics
  • Controller: ASPEED AST2500: 1 DB15

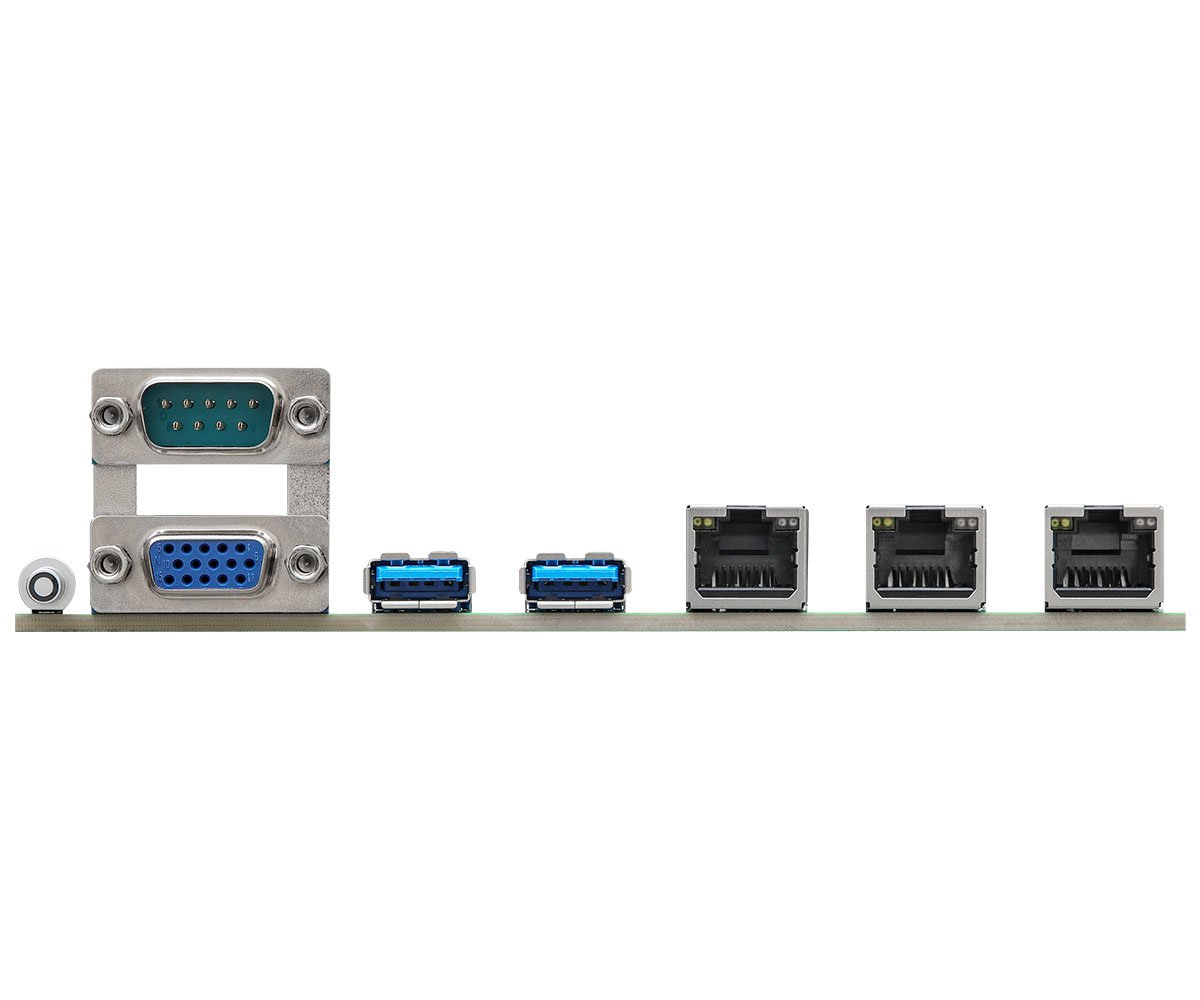

• Rear I/O
  • UID Button/LED: 1
  • VGA Port: 1 DB15
  • Serial Port: 1 DB9
  • USB 3.2 Gen1 Port: 2 Type-A (USB3.2 Gen1)
  • RJ45:
  • 2 RJ45 (1GbE)
  • 1 dedicated IPMI
• Internal Connector/Headers
  • Power Connector: 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)
  • Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
  • System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
  • Speaker Header: 1
  • Buzzer: 1
  • Fan Header: 8 (6-pin)
  • Thermal Sensor Header: 1
  • TPM Header: 1 (17-pin, LPC), 1 (13-pin, SPI)
  • SGPIO Header: 2
  • SMBus header: 1
  • PMBus header: 1
  • IPMB Header: 1
  • Clear CMOS: 1 (contact pads)
  • USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1)
• LED Indicators
  • Standby PWR LED: 1
  • 80 Debug Port LED: 1
  • Fan Fail LED: 8
• Hardware Monitor
  • Temperature: CPU, DDR, MB, TR1, Card side Temperature Sensing
  • Fan: Fan Tachometer
  • CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
  • Fan Multi-Speed Control
  • Voltage: Vsoc,Vcpu, VCCM, VPPM, +1.8V, +3V,+5V, +12V, BAT, +1.8VSB, +3VSB, +5VSB

Environment

• Temperature: Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
• Humidity: Non operation humidity: 20% ~ 90% (Non condensing)
