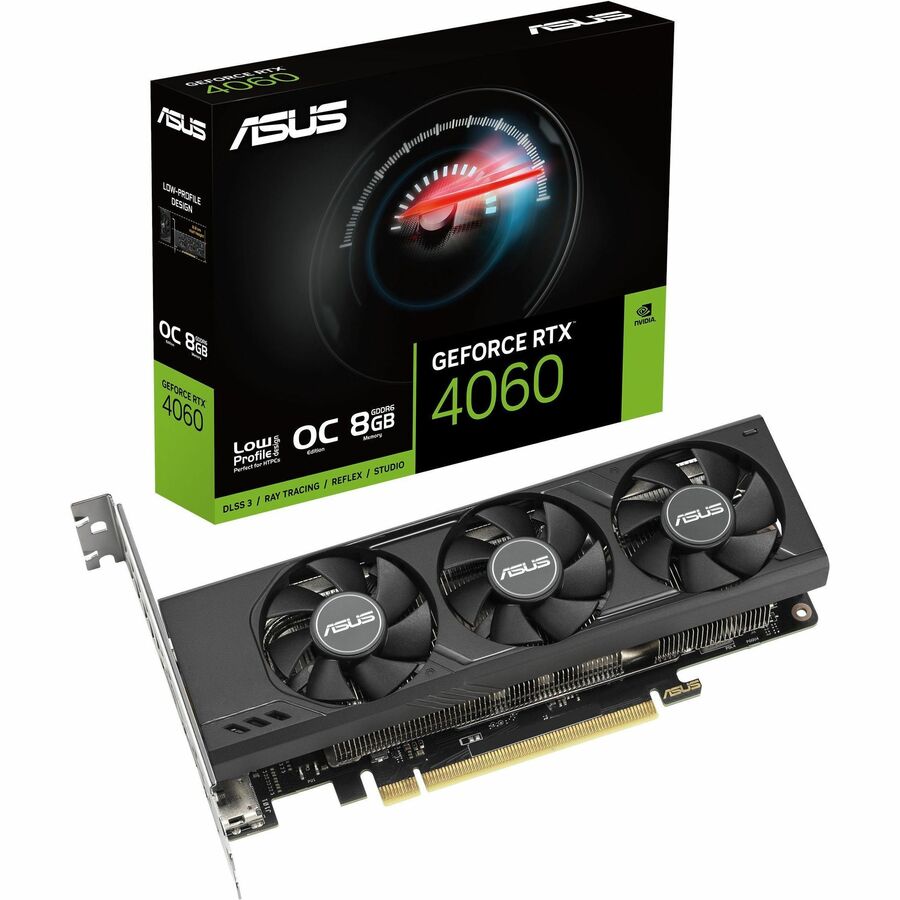

Asus NVIDIA GeForce RTX 4060 Graphic Card - 8 GB GDDR6 - Low-profile

ASUS GeForce RTX™ 4060 LP BRK OC Edition 8GB GDDR6 is big productivity in a small package

• NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2X performance and power efficiency
• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores: Up to 2x ray tracing performance
• OC edition: Boost Clock 2520MHz (OC Mode)/2490 MHz (Default Mode)
• IP5X dust resistance offers protection from particle ingress for better durability.
• Dual ball fan bearing can last up to twice as long as sleeve bearing designs.
• A2-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.
• Auto-Extreme technology uses automation to enhance reliability.
• GPU Tweak III provides intuitive performance tweaking, thermal controls, and system monitoring.

Big Productivity in a Small Package

ASUS GeForce RTX™ 4060 LP BRK is a low-profile, compact graphics card that enables multi-monitor productivity.

The Ultimate Platform for Gamers and Creators Powered by GeForce RTX 40 Series and DLSS 3

New Streaming Multiprocessors

• Up to 2x performance and power efficiency

Fourth-Gen Tensor Cores

• Up to 4x performance with DLSS 3 vs. brute-force rendering

Third-Gen RT Cores

• Up to 2x ray tracing performance

Cutting-Edge GPUs

• NVIDIA Ada Lovelace architecture

Realistic and Immersive Graphics

• Dedicated Ray Tracing Cores

AI-Accelerated Performance

• NVIDIA DLSS 3

Game-Winning Responsiveness

• NVIDIA Reflex low-latency platform

Built for Live Streaming

• NVIDIA Encoder

AI-Enhanced Voice and Video

• NVIDIA Broadcast app

Fast-Track Your Creativity

• NVIDIA Studio

Performance and Reliability

• Game Ready and Studio Drivers

IP5X Dust Resistance Keep it clean

Dust is enemy number one for fans. It's easy to clean the blades, but taking the fan apart to remove dust that has made its way inside is not a simple task. Passing the IP5X certification means the housing is safe from nasty particulates, so you'll never need that deep clean.

Technical Information

• API Supported: OpenGL 4.6
• Number of Monitors Supported: 4
• Features: Triple-fan Cooler
• Maximum Digital Display Resolution: 7680 x 4320
• CUDA Cores: 3072
• AI-powered: Yes
• Chipset Manufacturer: NVIDIA
• Chipset Line: GeForce
• Chipset Series: RTX
• Chipset Model: RTX 4060
• GPU Boost Clock: 2.52 GHz
• Standard Memory: 8 GB
• Memory Technology: GDDR6
• Bus Width: 128 bit
• Host Interface: PCI Express 4.0
• DisplayPort: Yes
• Number of DisplayPort Outputs: 2
• HDMI: Yes
• Number of HDMI Outputs: 2
• Power Supply Wattage: 550 W
• Power Connector: 1x 6-pin
• Slot Space Required: Dual
• Form Factor: Plug-in Card
• Card Height: Low-profile
• Cooler Type: Fan Cooler
• Height: 1.5"
• Width: 2.7"
• Length: 7.4"
• Package Contents
  • GeForce RTX 4060 LP BRK OC Edition 8GB GDDR6 Graphic Card
  • 1 x Speedsetup Manual
  • 1 x LP bracket
• Platform Supported: PC
• Environmentally Friendly: Yes
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)
