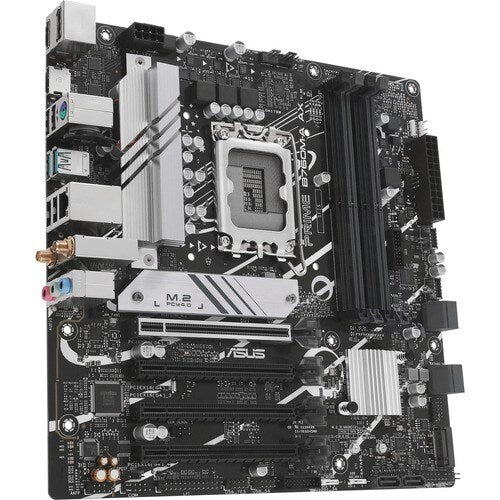

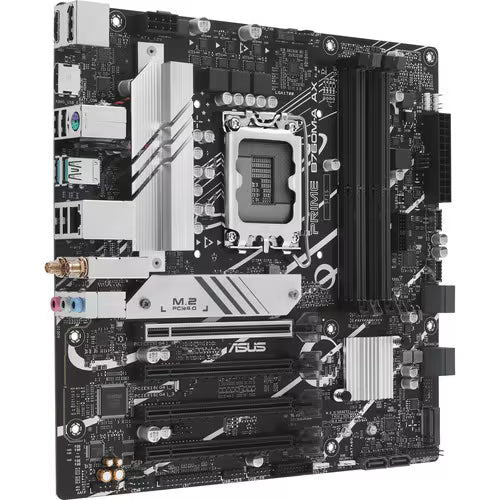

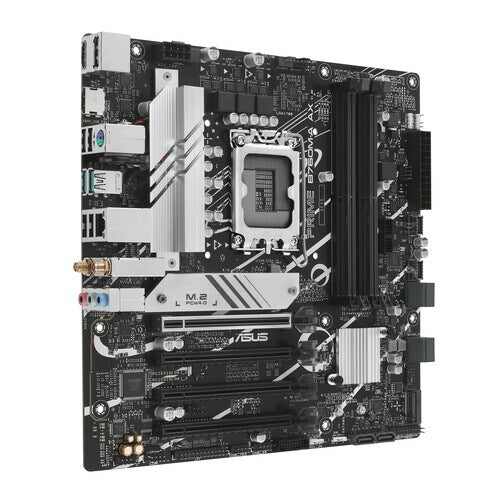

ASUS Prime B760M-A AX Micro-ATX Motherboard — Intel B760 | LGA-1700 | DDR5 | Wi-Fi 6E

ASUS Prime B760M-A AX Micro-ATX Desktop Motherboard — Intel B760 | Socket LGA-1700 | DDR5-7200 | PCIe 4.0 | Wi-Fi 6E | 2.5G LAN

The ASUS Prime B760M-A AX is expertly engineered to unleash the full potential of 12th and 13th Gen Intel Core processors, combining a robust power design, comprehensive cooling solutions, Wi-Fi 6E connectivity, and intelligent tuning options in a compact Micro-ATX form factor.

12th & 13th Gen Intel Core Ready

Built on the Intel B760 chipset with Socket LGA-1700, the Prime B760M-A AX supports Intel Core, Pentium Gold, and Celeron processors (12th and 13th Gen), delivering a stable and capable platform for productivity, gaming, and everyday computing.

Robust Power Design & ProCool Connector

Stable power is essential for high-core-count Intel processors. The Prime B760M-A AX features a robust power design with proprietary ProCool 8-pin connectors that pass 12V directly to the processor using solid pins — handling more current than hollow-pin alternatives for sustained, reliable performance.

DDR5-7200 Memory

4 x DIMM slots support up to 128GB of DDR5 SDRAM at speeds from DDR5-4800 up to DDR5-7200, delivering the bandwidth needed for modern gaming, productivity, and multitasking workloads.

PCIe 4.0 & 2 x M.2 Storage

PCIe 4.0 support across 4 expansion slots and 2 x M.2 interfaces deliver fast GPU and NVMe SSD performance, with M.2 heatsinks preventing throttling during sustained transfers — held in place by captive screws for easy, tool-friendly installation.

Wi-Fi 6E & 2.5G LAN

Wi-Fi 6E (IEEE 802.11ax) with Bluetooth 5.2 and premium 2.5G Ethernet provide fast, reliable wired and wireless connectivity for gaming, streaming, and everyday use.

Comprehensive Cooling

Multiple onboard heatsinks and an array of hybrid fan headers ensure your system stays cool and stable under intense workloads, with ASUS Intelligent Control dynamically optimizing fan speeds and system performance.

UEFI BIOS & Energy Efficiency

The ASUS UEFI BIOS offers simplified options for beginners and comprehensive features for veterans. The Power Saving function optimizes power consumption with CPU power limits, Aura lighting control, and fan profile management.

Specifications

• Chipset: Intel B760
• Socket: LGA-1700
• Supported CPUs: Intel Core 12th / 13th Gen, Pentium Gold, Celeron
• Form Factor: Micro-ATX (9.6" x 9.6")
• Memory: 4 x DIMM DDR5 | Up to 128GB | DDR5-4800 to DDR5-7200
• Storage: 6 x SATA 6Gb/s | 2 x M.2 (PCIe 4.0) with heatsinks
• RAID: 0, 1, 5, 10
• Expansion: 4 x PCIe x16 (PCIe 4.0)

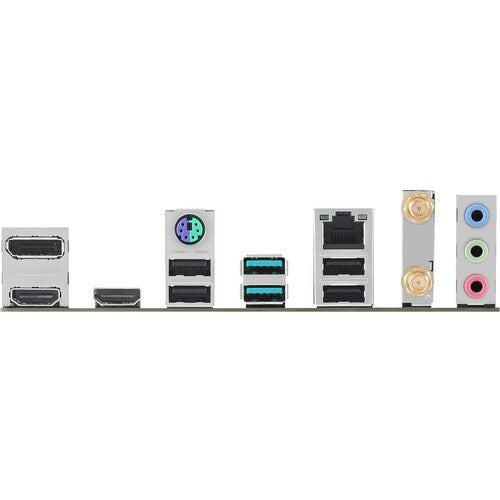

• USB Rear: 6 total (2x USB 3.2 Gen 2 Type-A)
• USB Onboard: 10 total (4x USB 2.0) | S/PDIF header
• Networking: 2.5G LAN | Gigabit LAN | Wi-Fi 6E (802.11ax) | Bluetooth 5.2
• Video Output: HDMI 2.1 | DisplayPort (CPU dependent)
• Audio: 7.1 Channel

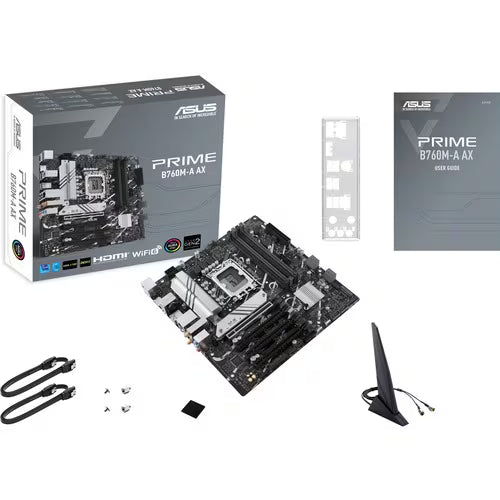

• In the Box: Motherboard, 2x SATA Cables, Wi-Fi Antenna, I/O Shield, M.2 Rubber Package, M.2 Screw Package, User Guide
