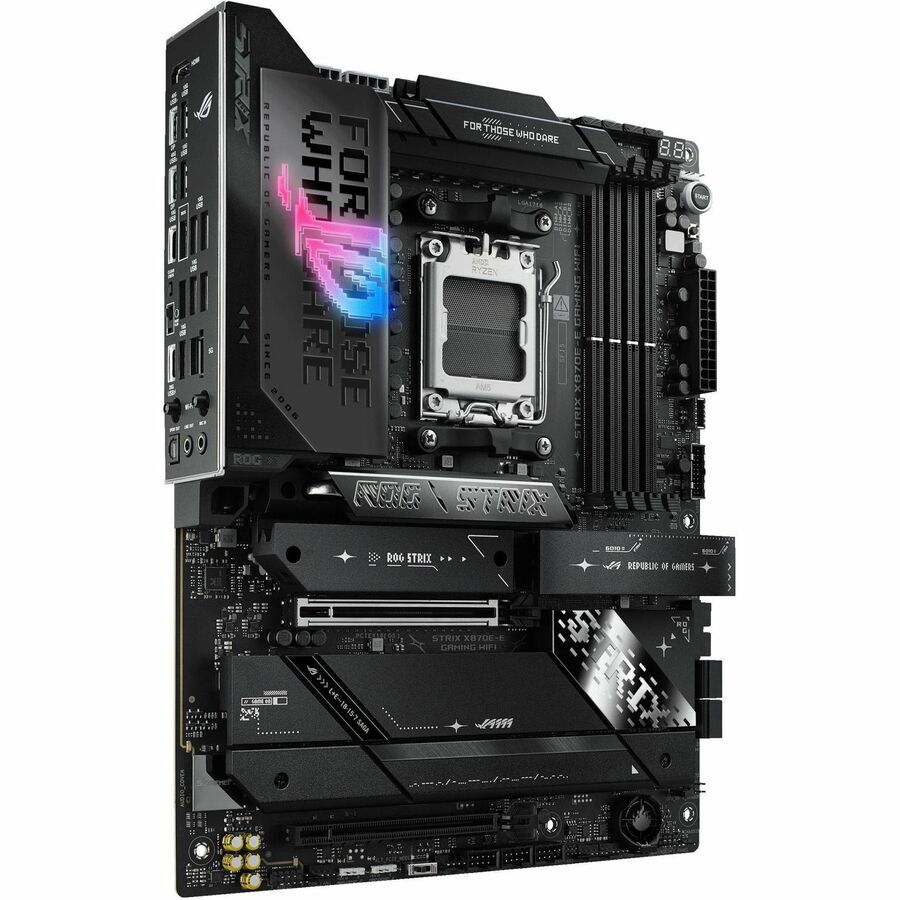

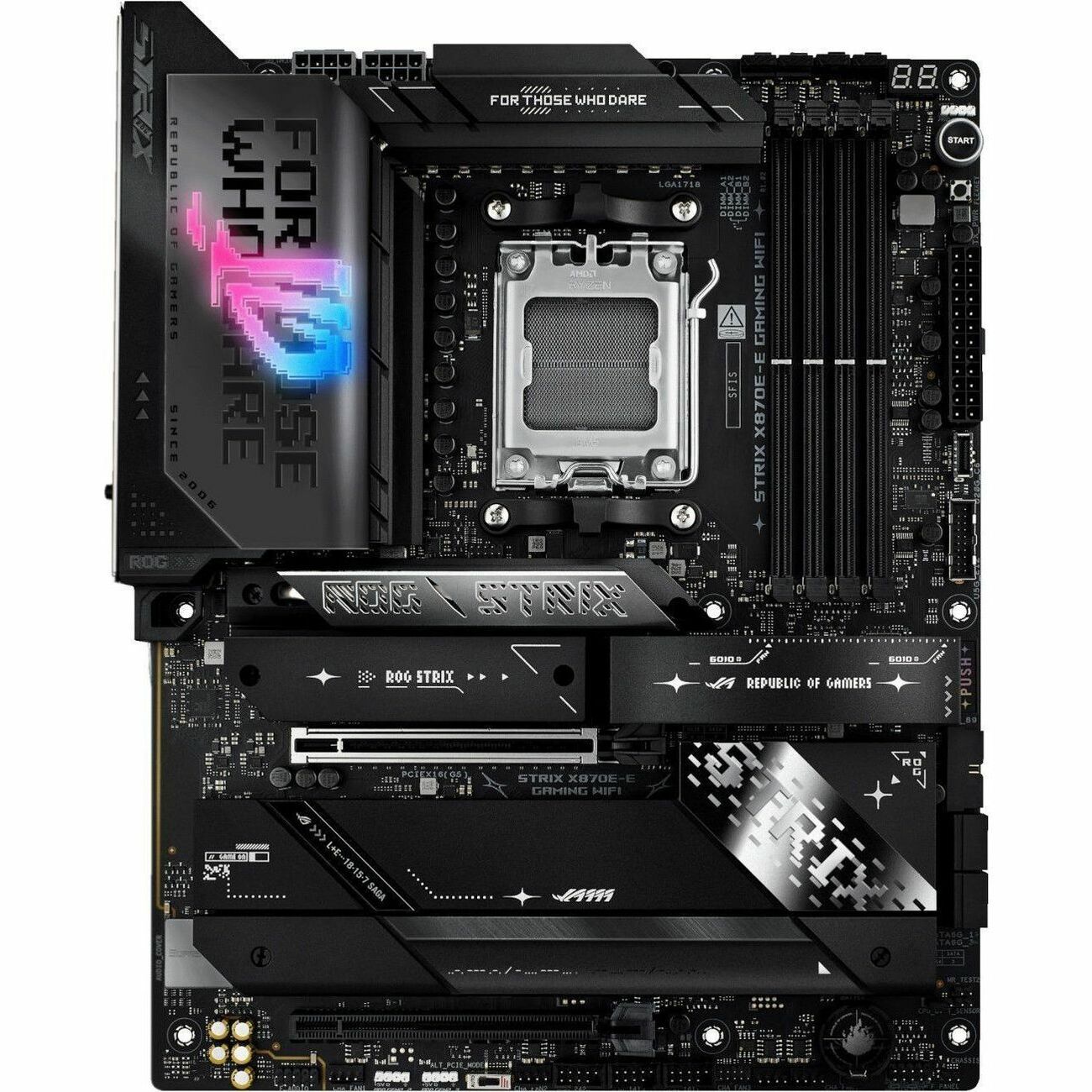

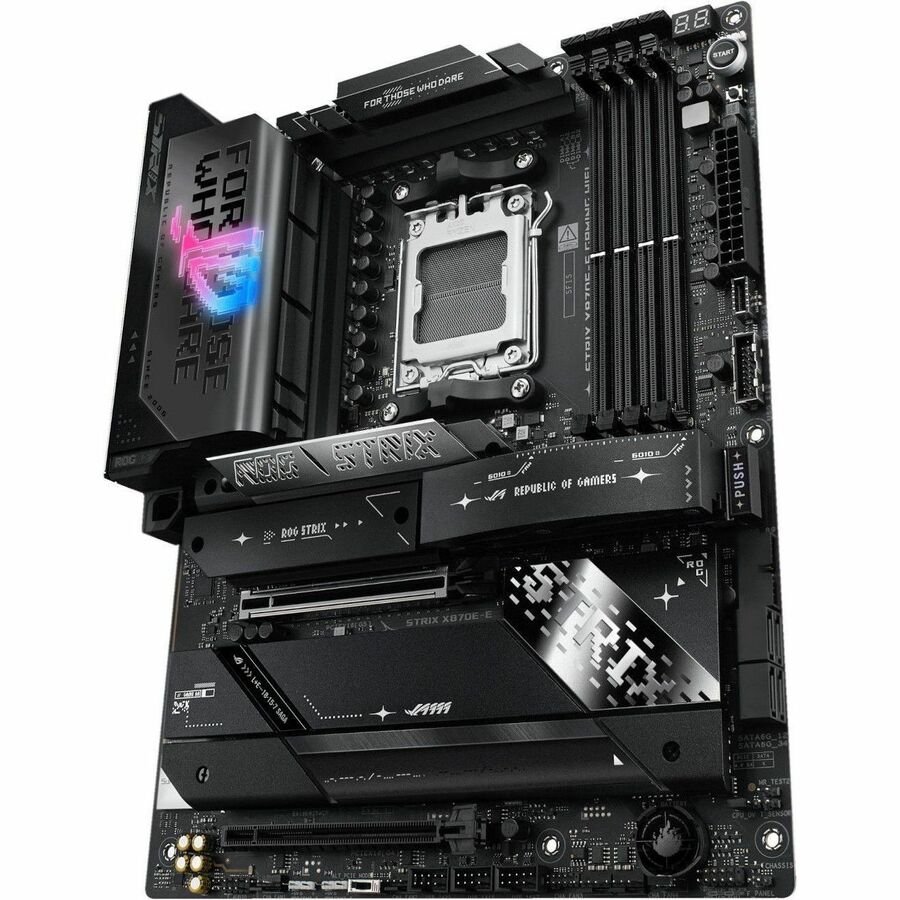

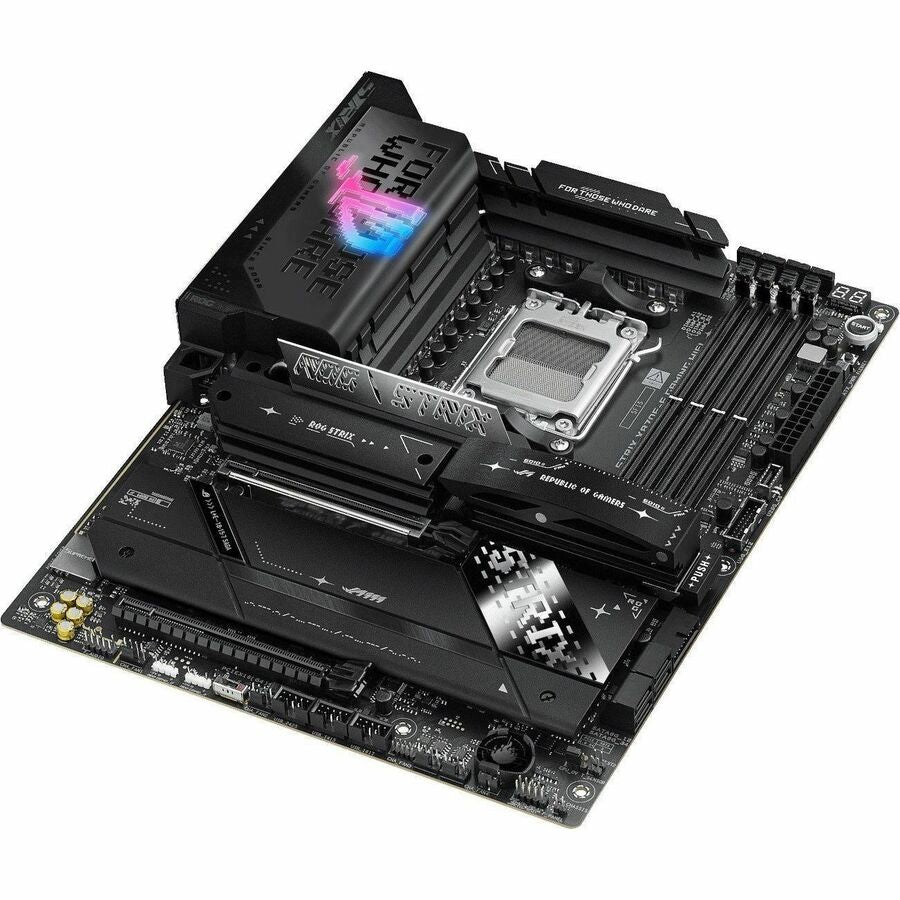

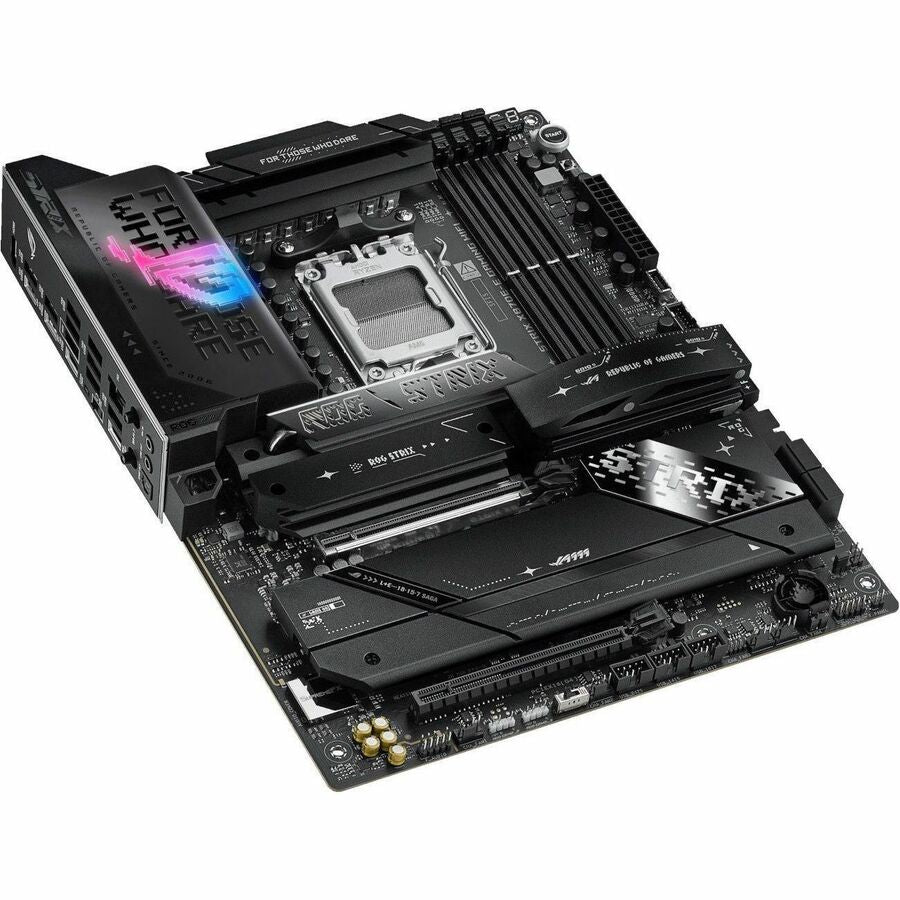

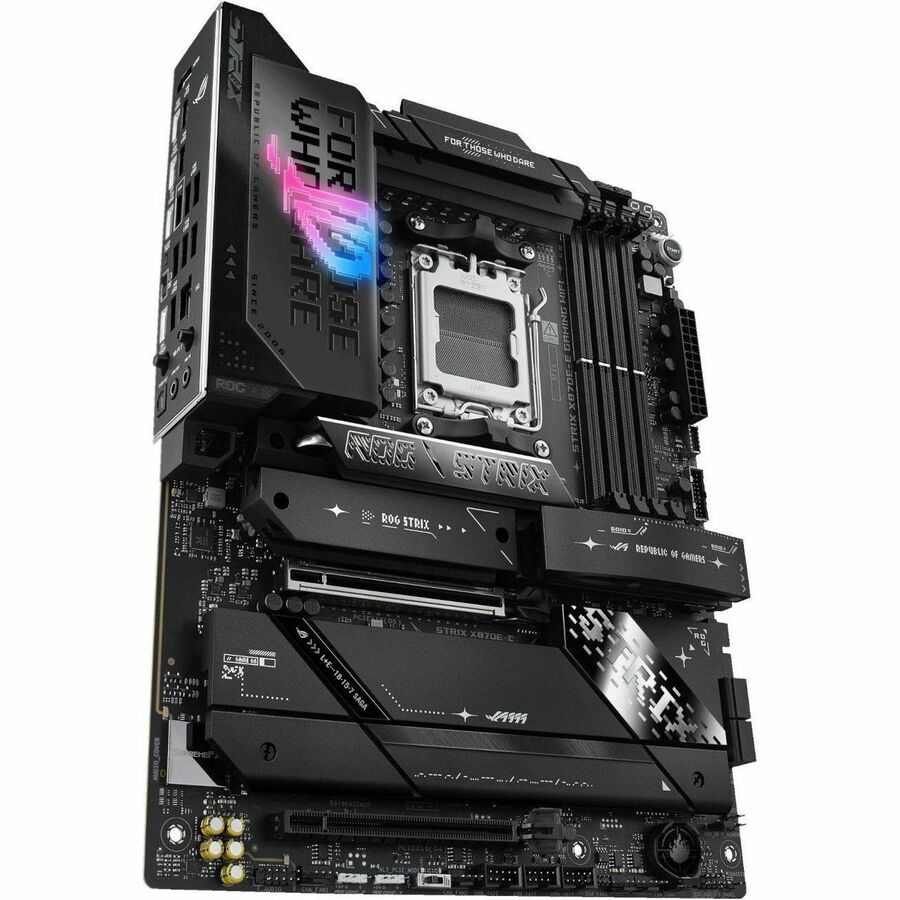

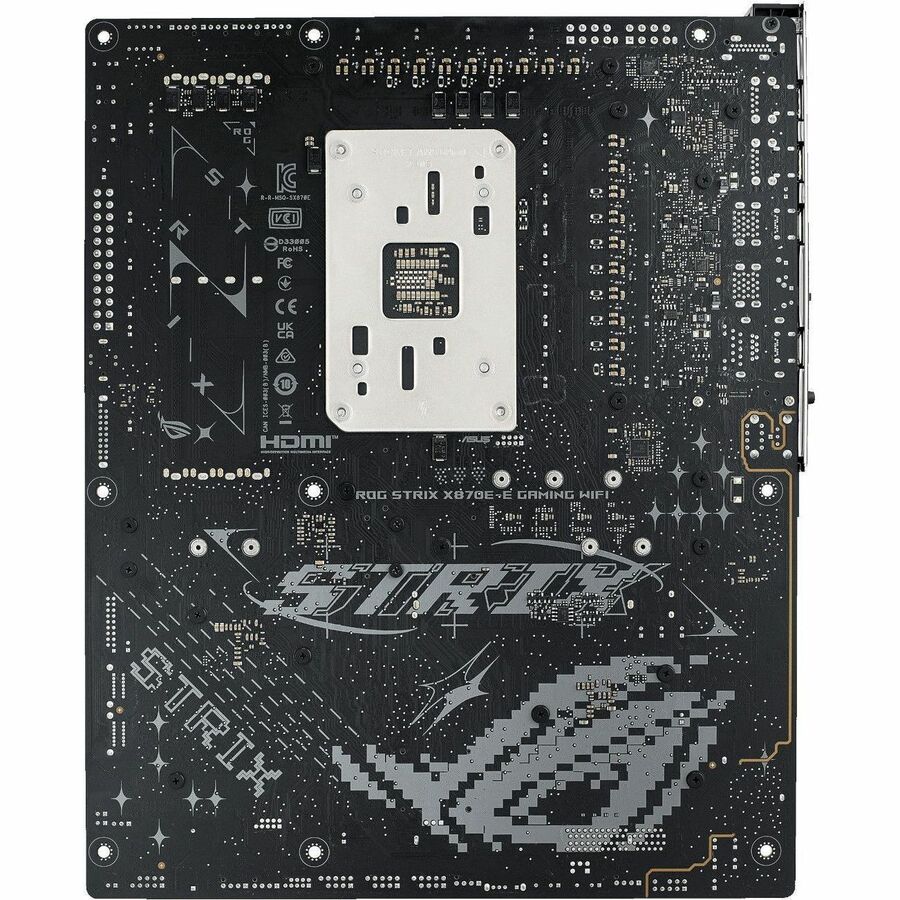

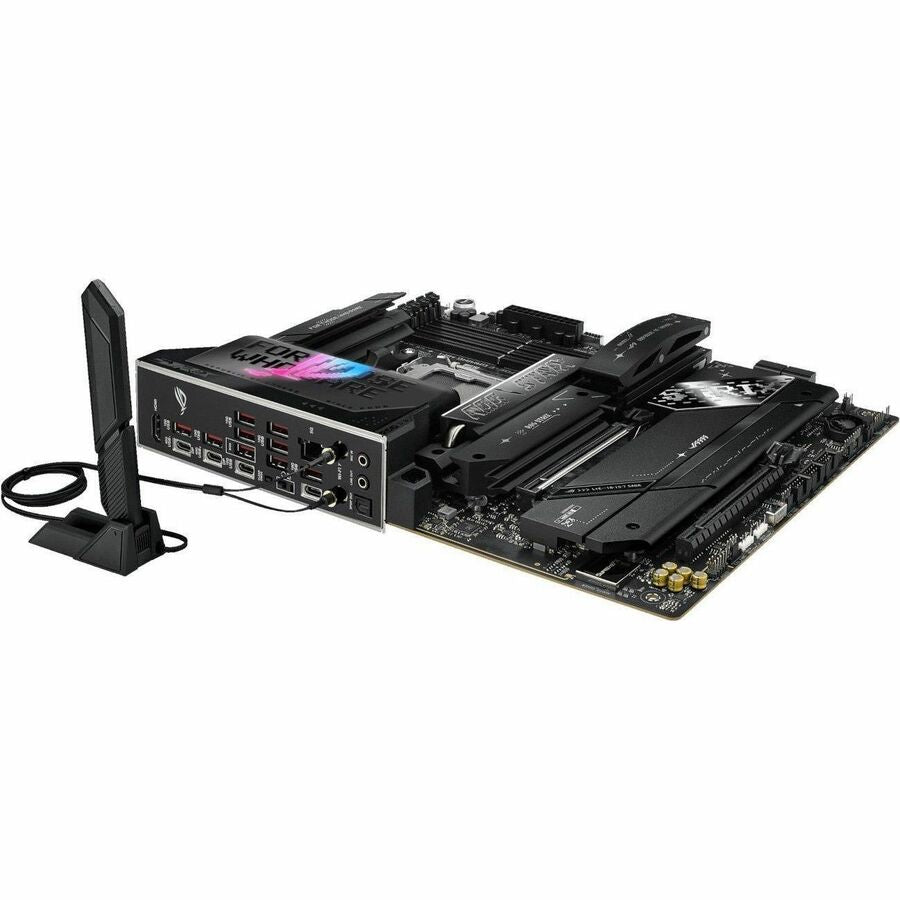

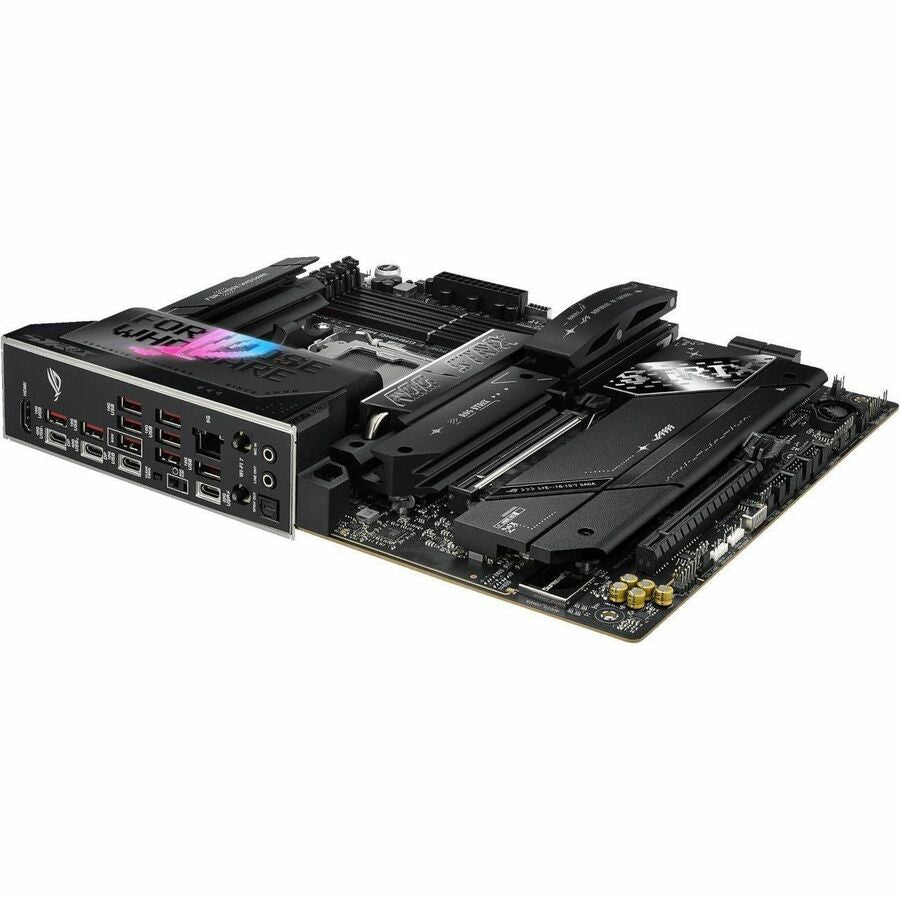

Asus ROG Strix X870E-E GAMING WIFI Gaming Desktop Motherboard- AMD X870E Chipset - Socket AM5 - ATX

ROG Strix X870E-E Gaming WiFi

The ROG Strix X870E-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen™ 9000 Series processors. Featuring PCIe^®5.0 support, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is streamlined while performance is maximized. Dual USB4^®Type-C ports and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.

ASUS AI INTELLIGENCE | AI OVERCLOCKING

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

AI OVERCLOCKING

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

AI COOLING II

Balance the thermals and acoustics of any build with a single click.

AI COOLING II

Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

AI NETWORKING II

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.

Performance OVERCLOCKING | Dynamic OC Switcher

Lightly-threaded tasks get fantastic uplift using AMD Precision Boost Overdrive (PBO), but all-core frequencies can be pushed higher via traditional overclocking. The Dynamic OC Switcher dynamically engages PBO or your preferred settings based on the CPU current or temperature, giving you the best of both worlds. Core Flex and PBO Enhancement can also be deployed to work in tandem with the Dynamic OC Switcher and further bolster performance on both sides of the aisle.

Core Flex

Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.

Asynchronous Clock

For next-level frequency flexibility, the ROG Strix X870E-E features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. Drive CPU performance to its absolute brink while maintaining the stability of related clock domains.

Separate CPU BCLK from other domains for unfettered overclocking

PBO ENHANCEMENT

AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

PerformanceMEMORY | DDR5 DOMINATION

The Strix X870E-E is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support.

• Ryzen 7 processors supported for faster, dependable performance and better access to data and information
• The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
• RAID supported levels provide data reliability and fault tolerance
• Enjoy the freedom of Wi-Fi and connect devices faster
• HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
• DisplayPort host interface allows audio and video signals to be shared in a single cable transmission to ensure maximum efficiency
• ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability

Technical Information

• AI-powered: Yes
• Chipset Manufacturer: AMD
• Chipset Model: X870E
• Total Processor Supported: 1
• Processor Socket: Socket AM5
• Processor Supported
  • Ryzen 7
  • Ryzen 8
  • Ryzen 9
• Number of Memory Slots: 4
• Memory Form Factor
  • DIMM
  • UDIMM
• Maximum Memory Supported: 192 GB
• Memory Technology: DDR5 SDRAM
• Memory Speed Supported: 8000 MHz
• Error Checking: ECC
• Controller Type: Serial ATA/600
• RAID Supported: Yes
• RAID Levels
  • 0
  • 1
  • 5
  • 10
• Onboard Video; CPU Dependent Video
• Audio Channels: 7.1
• Bluetooth: Yes
• Bluetooth Standard: Bluetooth 5.4
• Gigabit Ethernet: Yes
• 10Gigabit Ethernet: Yes
• Wireless LAN: Yes
• Wireless LAN Standard: IEEE 802.11be
• Total Number of Expansion Slots: 3
• PCI Express Standard
  • PCI Express 4.0
  • PCI Express 5.0
• Total Number of PCI Express Slots: 3
• Number of PCI Express x16 Slots: 3

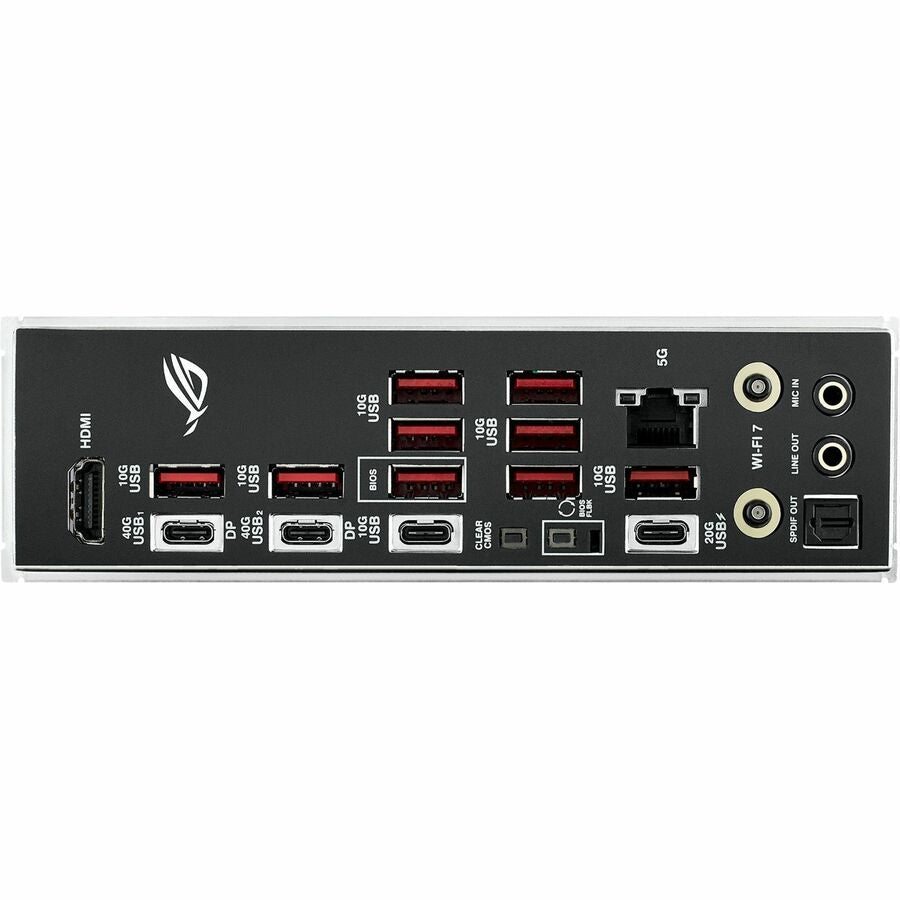

• Total Number of USB Ports: 13
• S/PDIF: Yes
• VGA: Yes
• HDMI: Yes
• HDMI Version: 2.1
• DisplayPort: Yes
• Number of Network (RJ-45) Ports: 1
• Number of SATA Interfaces: 4
• Number of M.2 Interfaces: 5
• Total Number of Onboard USB Ports: 11
• Number of Onboard USB 2.0 Ports: 6
• Form Factor: ATX
• Width: 12"
• Depth: 9.6"

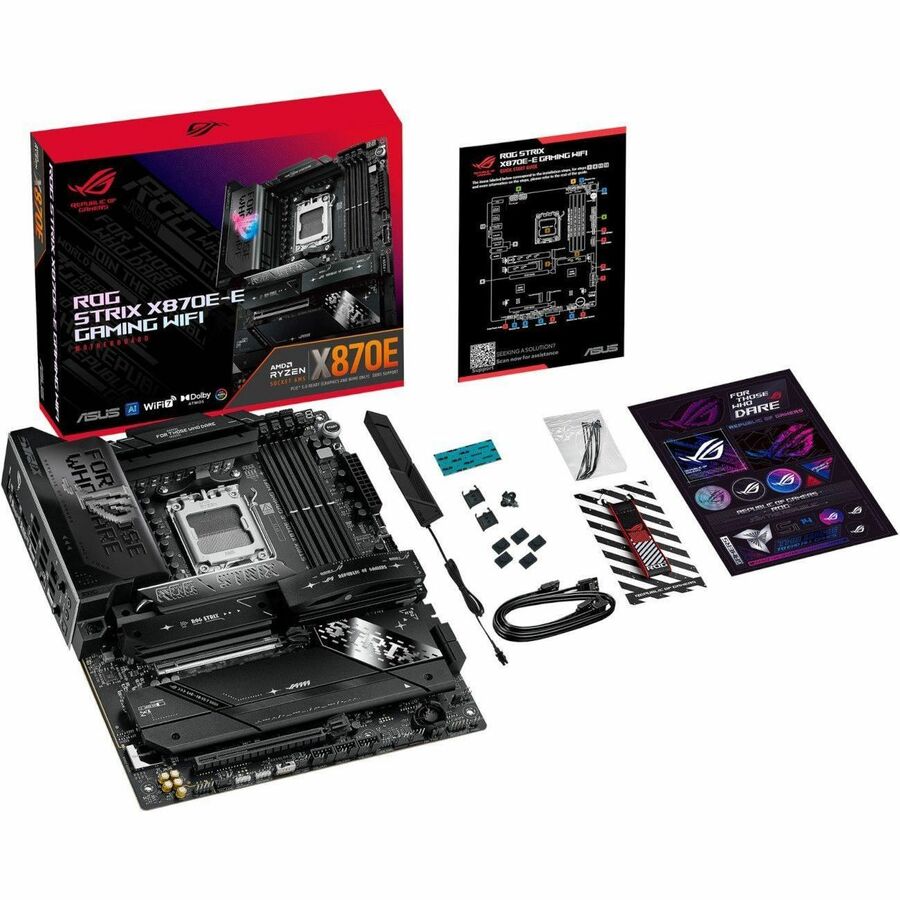

• Package Contents
  • Strix X870E-E GAMING WIFI Gaming Desktop Motherboard
  • 2 x SATA 6Gb/s cables
  • 1 x Thermal pad for M.2 22110
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x Cable ties pack
  • 1 x M.2 Q-Latch package
  • 2 x M.2 Q-Slides
  • 1 x ROG key chain
  • 1 x ROG Strix stickers
  • 5 x M.2 Rubbers
  • 1 x Quick start guide
