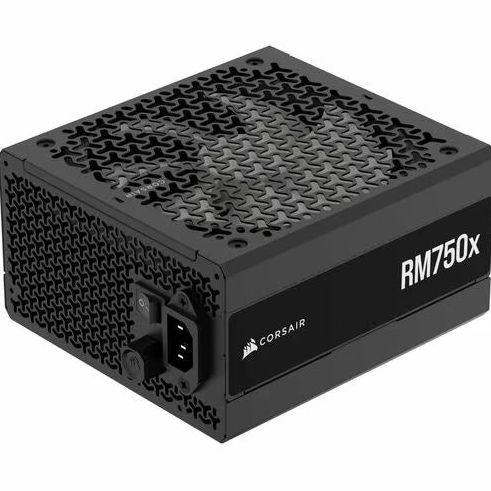

Corsair RM750X ATX Power Supply

CORSAIR RMX SERIES RM750X FULLY MODULAR LOW-NOISE ATX POWER SUPPLY

QUIET, DEPENDABLE, EFFICIENT

This fully modular, low noise, Cybenetics Gold-certified power supply is ATX 3.1 compliant and ideal for delivering dependable power to today's top-performing PCs.

50°C CONTINUOUS OPERATING TEMPERATURE

Ensures reliable power for your PC, even under high-stress conditions.

105°C-RATED CAPACITORS

Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

ATX 3.1 CERTIFIED

Be confident your PSU supports the latest sleep and hibernate modes and modern CPU and GPU requirements. ATX 3.1 compliance ensures full compatibility with modern components and power states.

CLEAN CABLING, EVERY TIME | FULLY MODULAR CONNECTORS

Connect only what you need using sleek embossed cables with low-profile combs to make installations a breeze.

Native 12V-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.

THE STRONG, SILENT TYPE | 140mm LOW-NOISE FAN

A fluid dynamic bearing fan with magnetic dome structure keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.

ENGAGE MANUAL CONTROLS | MANUAL FAN OVERRIDE KNOB

Want to get more air through the PSU or to exhaust some heat from your case? You can override the Zero RPM Mode and low-noise profile of the RMx Series with our manual fan override knob, increasing fan speed and airflow.

WORLD-CLASS SUPPORT

Our award-winning service means you can enjoy your gear worry-free.

• Converts current to the desired voltage and frequency to manage your power requirements
• 3.3 V DC ensures steady and uninterrupted power supply to your device
• The maximum output power of 750 W boosts up the performance

Technical Information:

• Form Factor: Internal
• Reliability:
  • MTBF: 100,000 Hours
• Interfaces/Ports:
  • Number of SATA Power Connectors: 8
  • PCI Express Connector: Yes
  • Number of (4+4 pin) CPU Power Connectors: 2
  • Number of (6+2 pin) PCI Express Power Connectors: 4
• Technical Information:
  • Fan Diameter: 140 mm
  • Fan Bearing Type: Fluid Dynamic Bearing
  • Number of Fans: 1
  • NVIDIA SLI Supported: Yes
  • Modular: Yes
  • Specification Compliance:
    • ATX 3.1
    • ATX12V v3.1
• General Information:
  • Product Type: Power Supply
  • Input Voltage: 230 V AC / 120 V AC
  • Output Power: 750 W
  • Output Voltage:
    • 5 V DC
    • 5 V SB
    • 12 V DC
    • 3.3 V DC
  • Input Frequency: 63Hz
  • Number of +12V Rails: 1
  • Output Voltage Detail:
    • 12 V DC @ 62.5 A
    • 3.3 V DC @ 20 A
    • 5 V DC @ 3 A
    • 5 V DC @ 20 A
