Dynatron

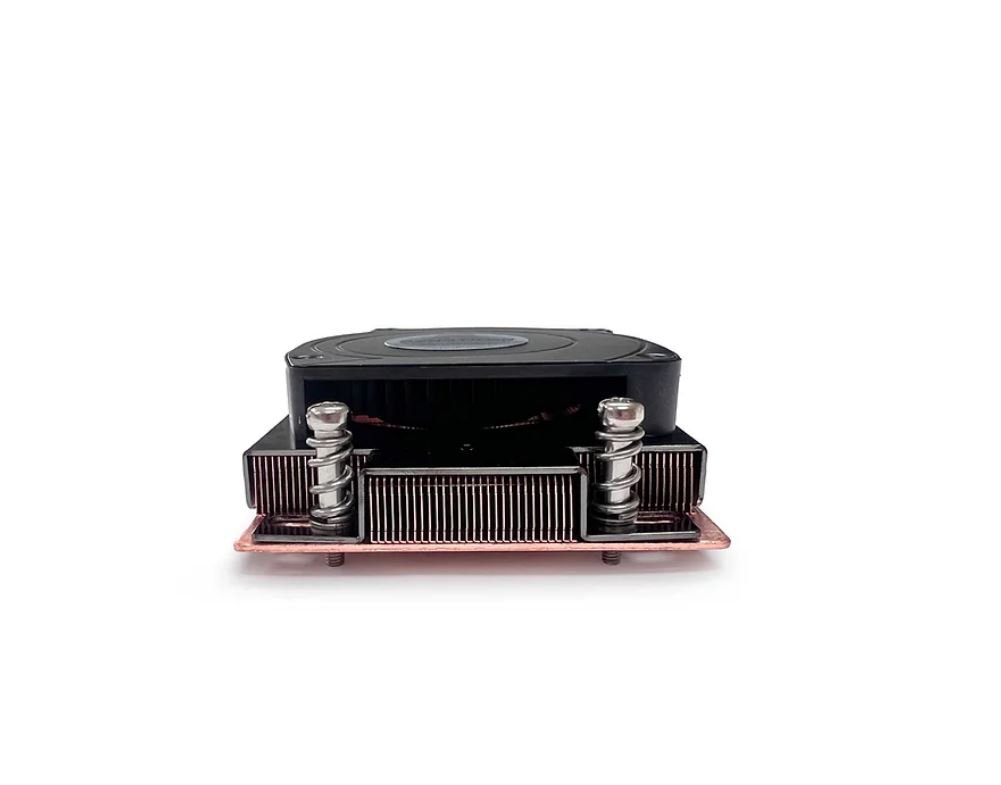

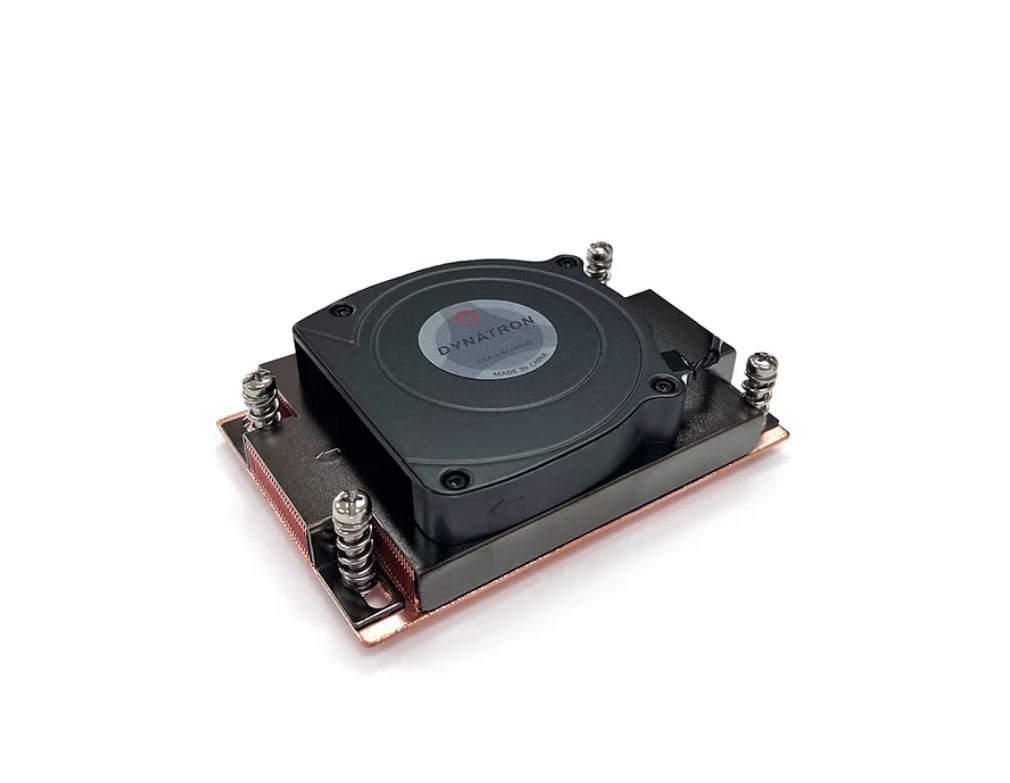

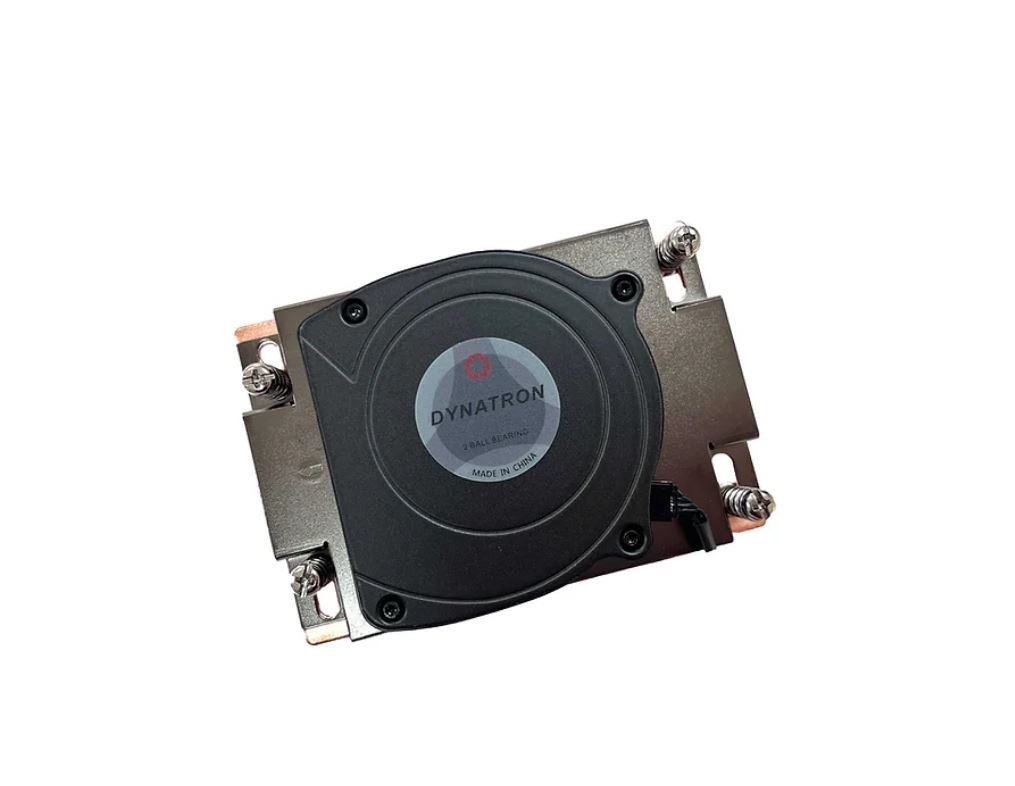

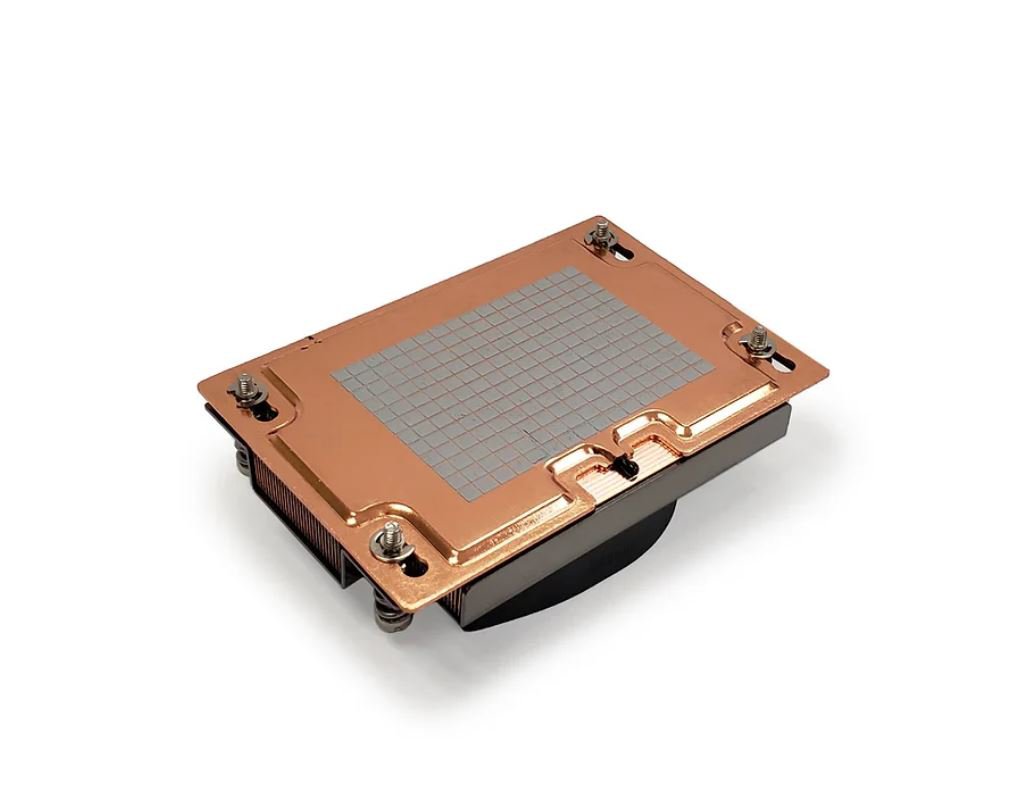

DYNATRON A41 1U CPU Cooler/Heatsink
DYNATRON A41 1U CPU Cooler/Heatsink
Regular price
$61.59 USD
Regular price
Sale price
$61.59 USD
Quantity
Couldn't load pickup availability
- CPU Support: AMD Ryzen Threadripper/EPYC Processor
- CPU Socket: sWRX8/sTRX4/TR4/SP3
- Screw Type: M3.5
- Installation Torque: 12.5-15.1 in-lb
- Solution: 1U Server and Up
- Dimensions: 120 x 82 x 28.6 mm
- Weight: 480g
- Material: Copper1100 Heatsink with Vapor Chamber Base
- Fan Dimension: OHMS80 x 13 mm
-
Speed
- At Duty Cycle 20%: 2000 +/- 200 RPM
- At Duty Cycle 50%: 4900 +/- 10% RPM
- At Duty Cycle 100%: 8600 +/- 10% RPM
-
Power
- At Duty Cycle 20%: 1.08 W
- At Duty Cycle 50%: 4.70 W
- At Duty Cycle 100%: 23.45 W
- Bearing: Ball Type, Double
- Rated Voltage: 12V
-
Air Flow
- At Duty Cycle 0~20%: 5.59 CFM
- At Duty Cycle 50%: 14.76 CFM
- At Duty Cycle 100%: 26.25 CFM
-
Noise Level
- At Duty Cycle 20%: 23.3 dBA
- At Duty Cycle 50%: 43.5 dBA
- At Duty Cycle 100%: 62.2 dBA
-
Air Pressure
- At Duty Cycle 20%: 3.69 mm-H2O
- At Duty Cycle 50%: 25.28 mm-H2O
- At Duty Cycle 100%: 89.80 mm-H2O
-
Lead Wire Pin Out
- Pin1- (-)
- Pin2- (+)
- Pin3- (Techometer/Signal output)
- Pin4- (PWM)
- Life - Continuous operating under normal temperature (40 °C or 104 °F): 70,000 Hours
