Leadex V Platinum PRO White 850W ATX 80 PLUS PLATINUM Certified Power Supply

Leadex V Platinum PRO White 850W ATX 80 PLUS PLATINUM by Super Flower

• • Shorten its size to 130mm with no reduced performance
  • Full modular design with all ribbon cables to maximize flexibility
  • 80 PLUS Platinum Certified,90% 92% 89% Efficiency At 20% 50% 100% Rated Load
  • 100% Japanese 105C Capacitors (Main Board & Modular Backpanel)
  • Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
  • Comply With ATX 12V v2.52 & EPS 12V. v2.92 Specification

  • Over Voltage Protection / Over Current Protection / Dual Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
  • Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards(Haswell ready)
  • Support NVIDIA SLI & ATI CrossFireX High Performance Graphic Card
  • More than 2,000 times On/Off test
  • Lead-free Green Materials with RoHS / WEEE Compliance
  • Perfect For Professional & High Performance Gaming System
• Output Wattage: 850 W
• Connector Type: ATX12V / EPS12V
• Transform Efficiency: 20%: 90%; 50%: 92%; 100%: 89% (115V Internal Platinum)
• Intel Power Design Guide: EPS Ver. 2.92 & ATX 2.52

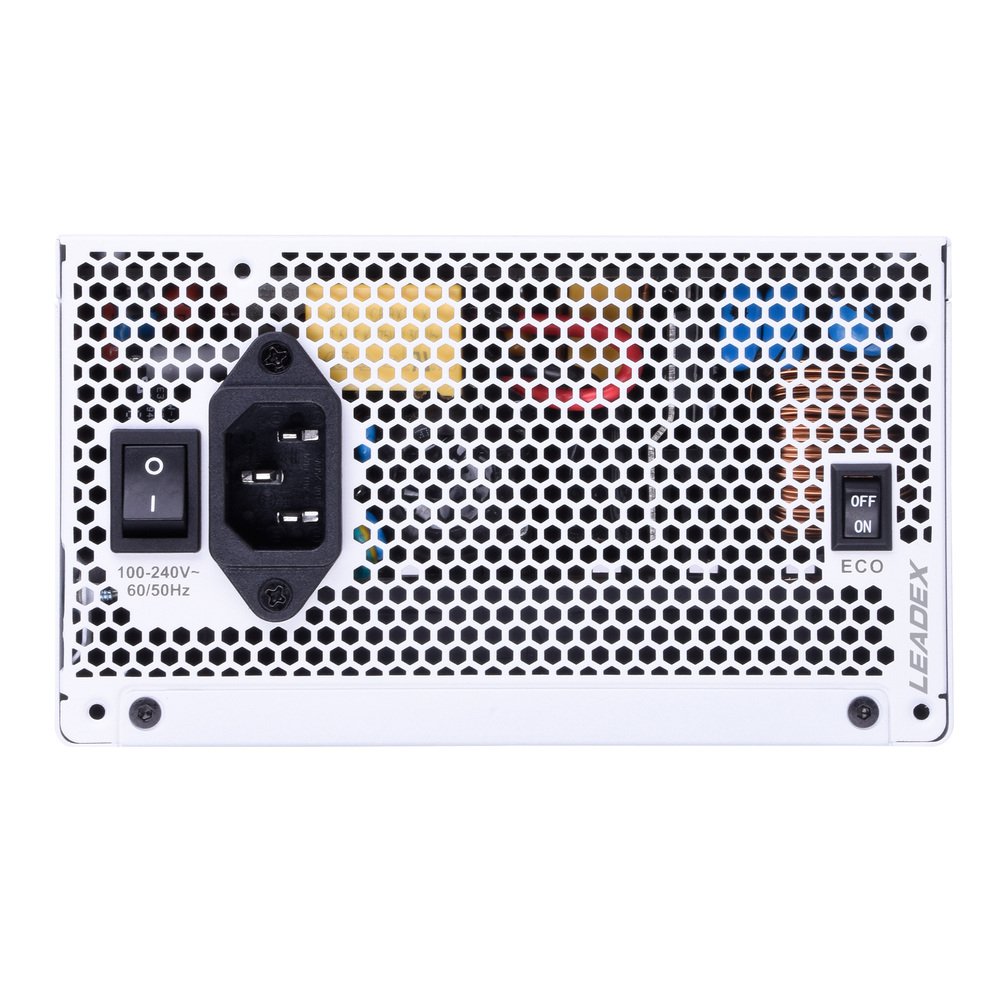

• AC Input: 100V-240V ~ 60Hz/50Hz

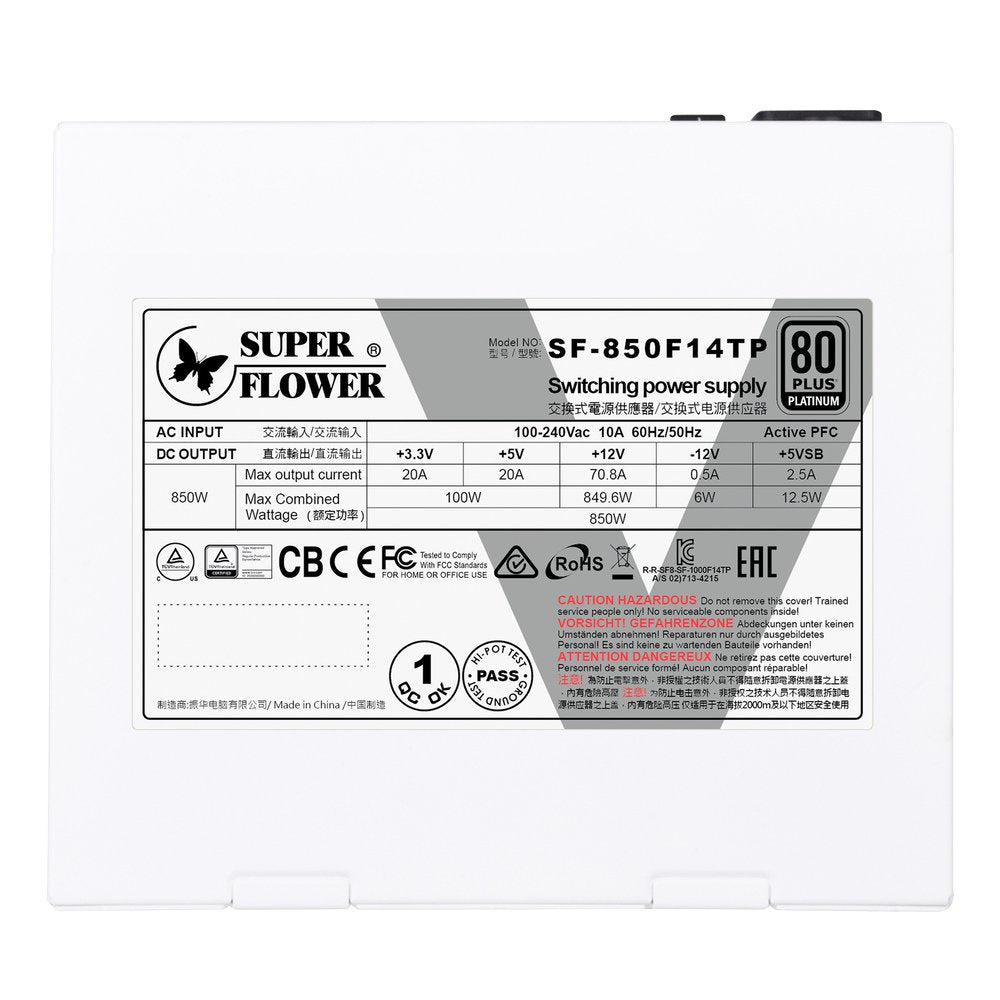

• DC Output: +3.3V 20A; +5V 20A; +12V 70.8A; -12V 0.5A; +5VSB 2.5A

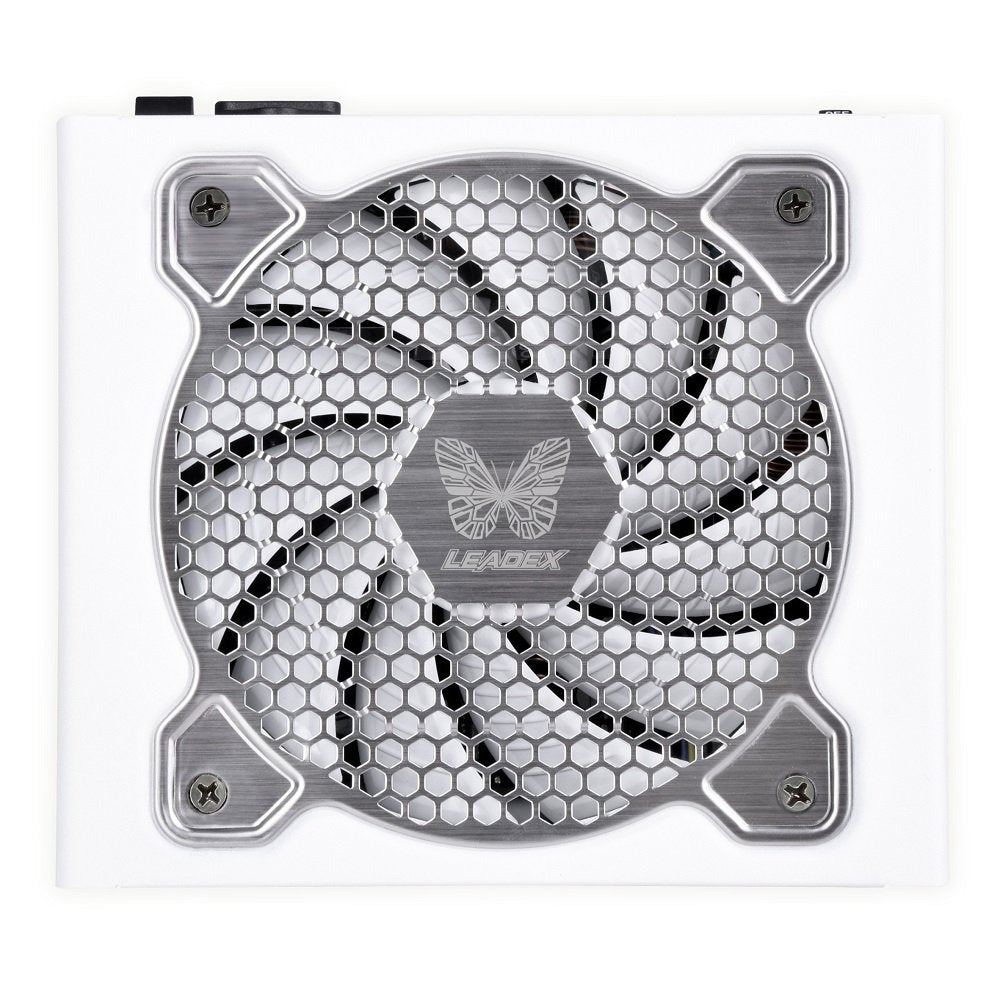

• Fan Size: 12cm FDB FAN
• Protection: OVP/OCP/Dual OPP/SCP/UVP/OTP/NLO/SIP
• Safety Certificates: cTUVus / TUV/CB/CE/FCC/RCM /RoHS/ KCC
• Temperature: Passed 50°C Hot Testing

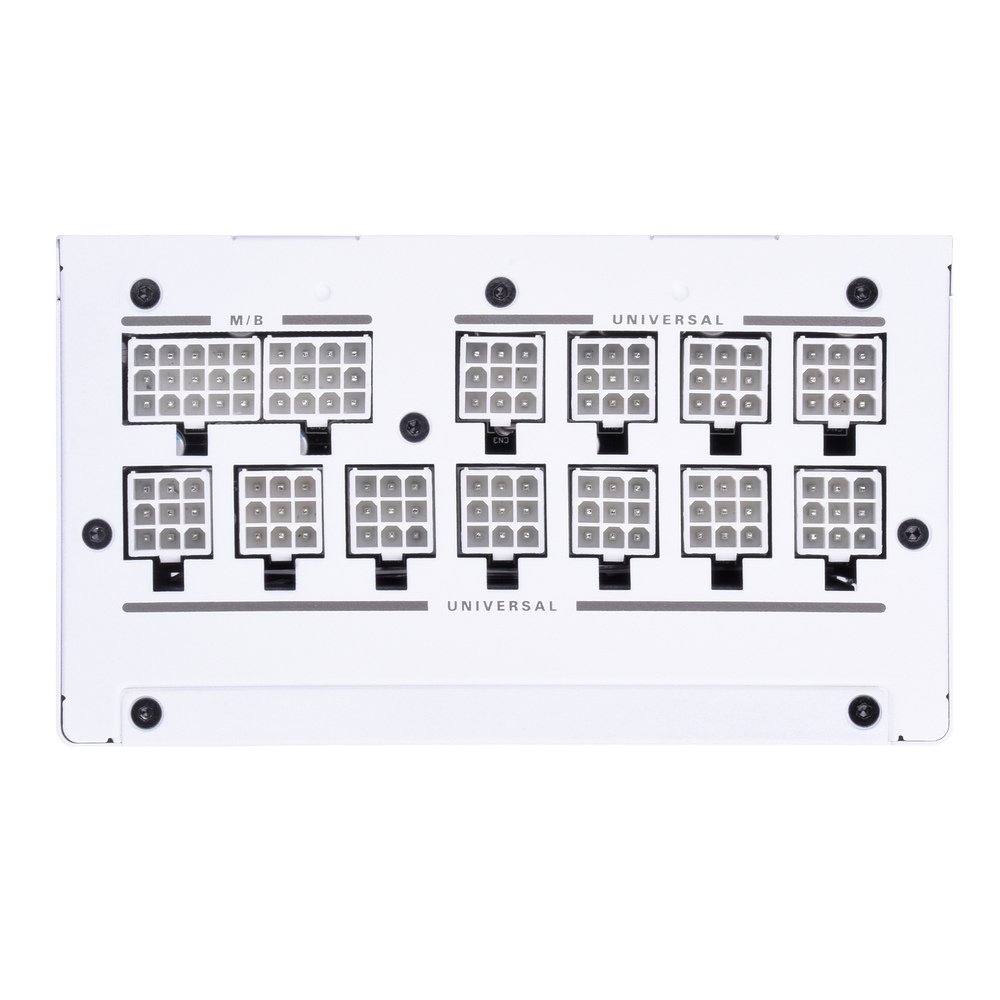

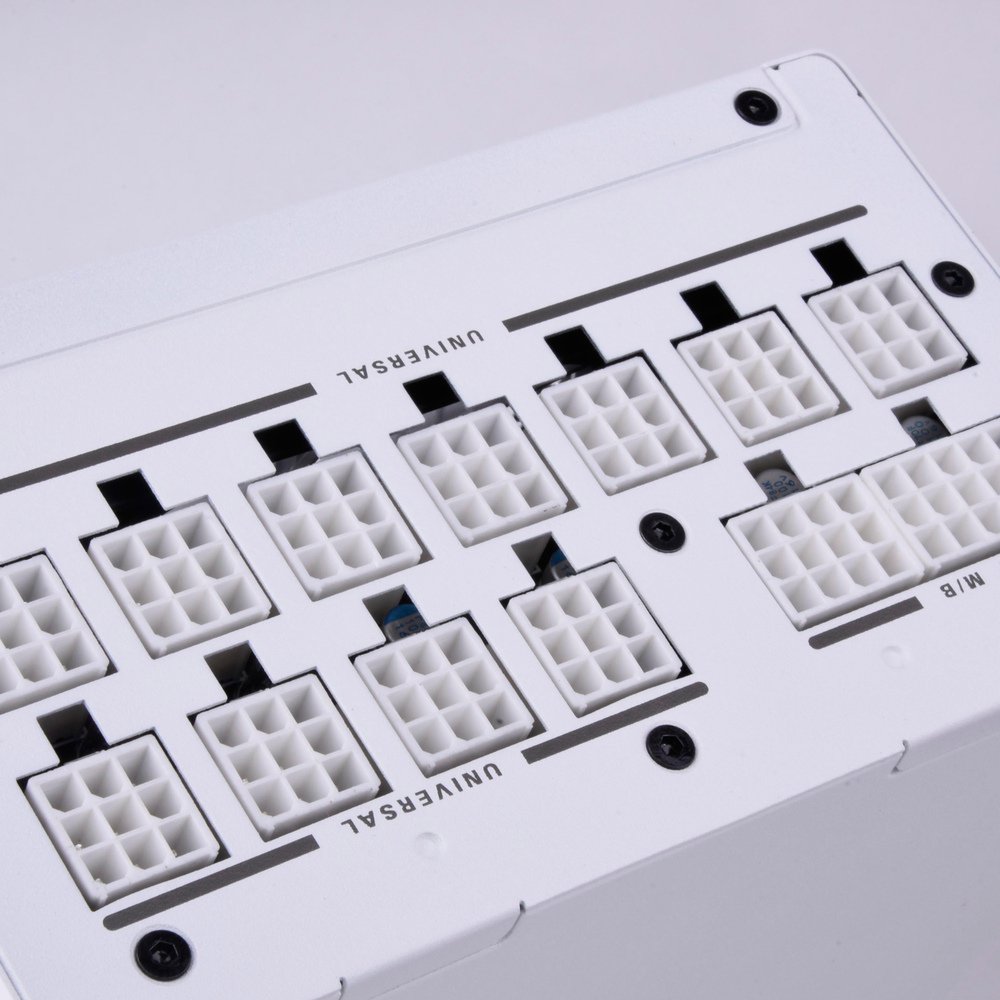

• PSU Connector
  • 20 + 4 Pin ATX Main Power Cable x 1
  • 8 (4 + 4)Pin EPS (CPU) x 2
  • PCI 6+2 Pin) x 3
  • 2 SATA x 1
  • 3 SATA x 1
  • 4 SATA x 1
  • 4 Molex x 1
• PSU Modular Format: Full Modular
• Dimension: 130mm(L) x 150mm(W) x 86mm(H)
