Lian Li Edge series EG1000BE.US 1000W- 80 PLUS Platinum Power supply

Lian Li Edge series EG1000BE.US 1000W- 80 PLUS Platinum Power supply- ATX 3.1 and PCIE 5.1 ready- specifically for dual-chamber chassis - Supports up to 4 x USB devices - Black

Technical Information:

• Features

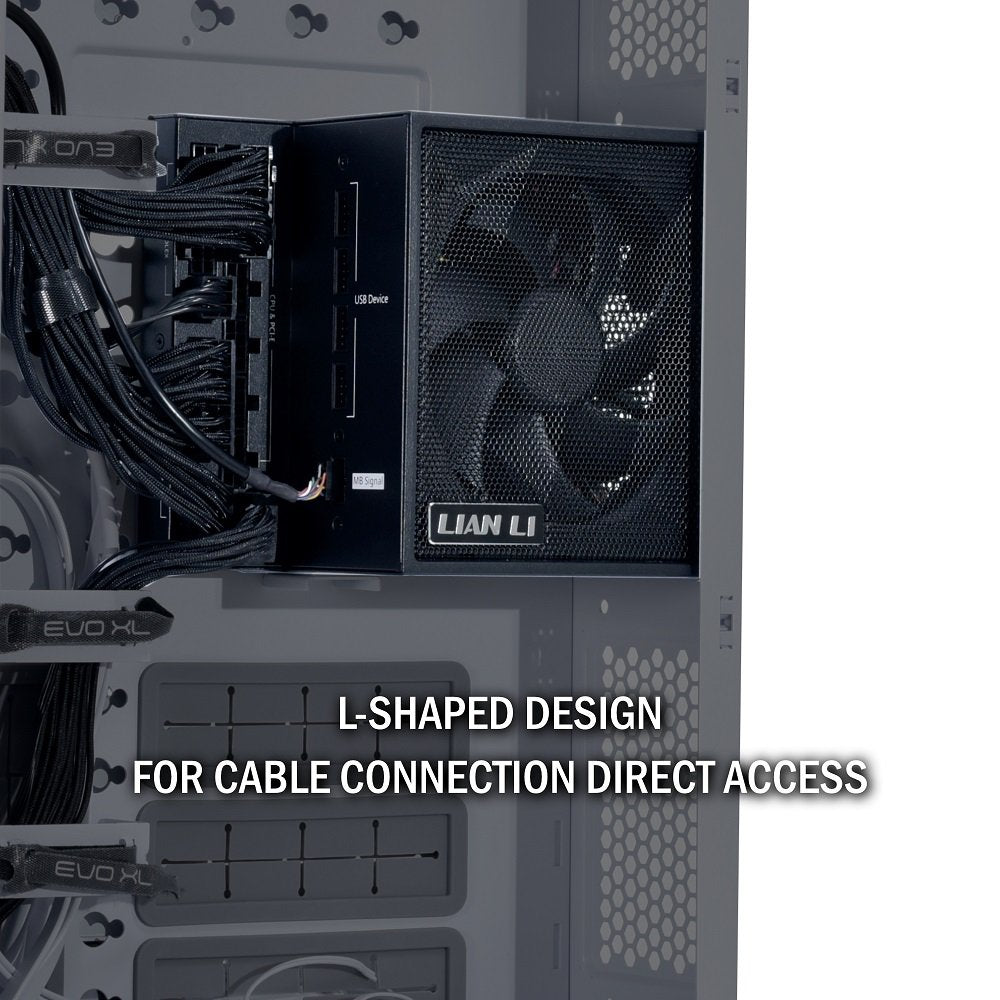

  • L-Shape design for dual chamber case
  • 80 PLUS Platinum Effieciency
  • ATX 3.0/3/1 compliant PSU

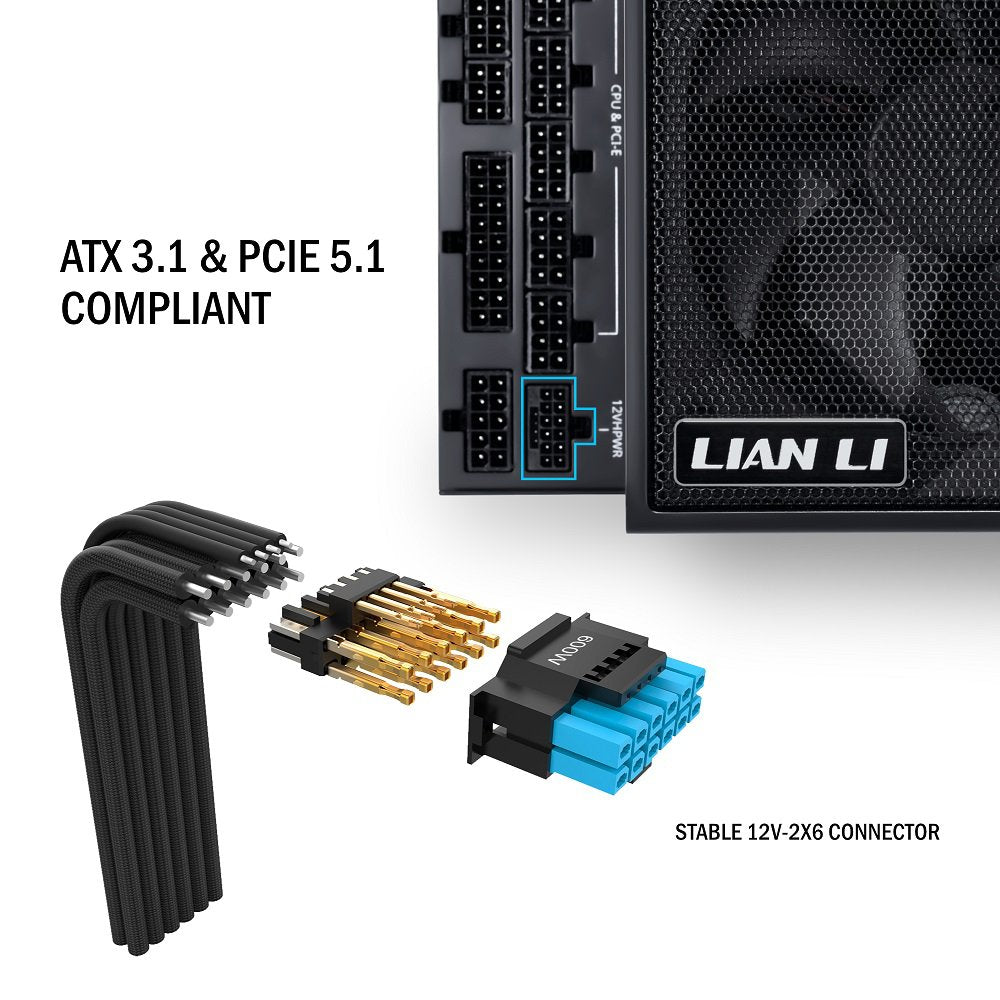

  • PCIe 5.1 ready with in-house R&D 12V-2x6 alloy copper soldered terminals

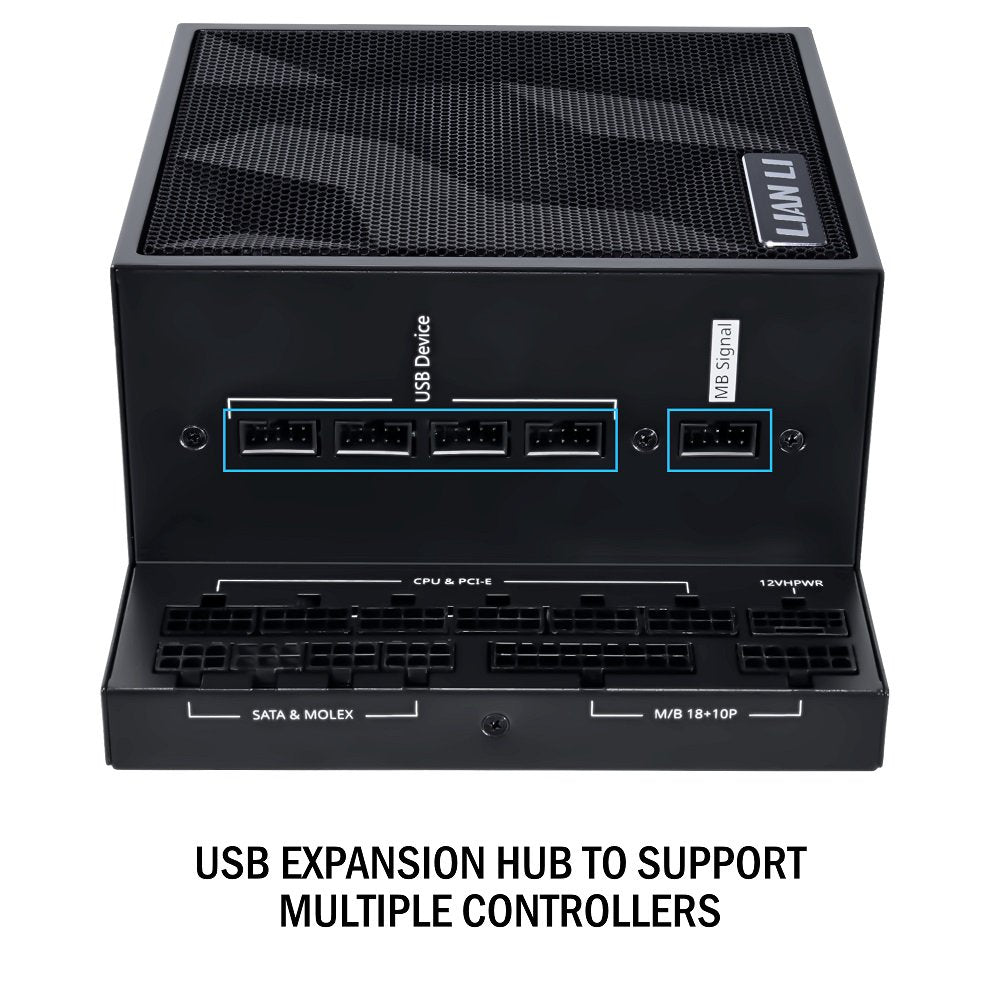

  • Built-in USB expantion hub with 4 internal USB 2.0 headers
  • Integrating German EPCOS bulk capacitors

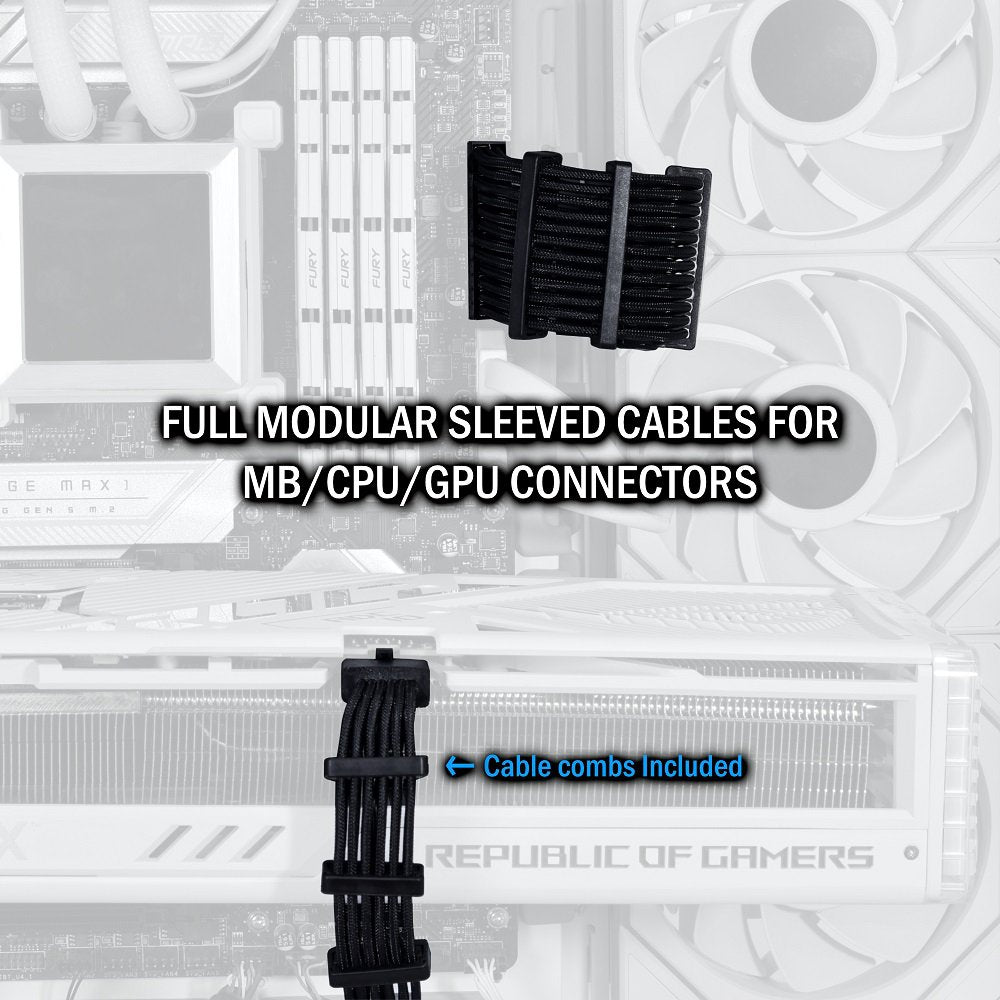

  • Full modular sleeved cables with cable combs on MB/CPU/GPU connectors
• ATX12V Version: V3.1
• Color: Black
• 80 Plus Efficiency: 80 Plus GOLD
• DC Output Cable: Full Modular
• Material: Steel
• PFC: Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz
• Input Rating: 100-240Vac 12-6A 50-60Hz
• MAX. DC Output: 1000W
• Combined +12V: 996 W
• Combined +3.3V & +5V: 120W
• Fan Spec: 120mm FDB Fan
• Fanless mode: Yes
• Connectors
  • 1 x 24/20-Pin motherboard connector (500mm) x1pcs
  • 1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs
  • 1 x 8/6+2 Pin PCle connector (550m m) x4pcs
  • 1 x 12V-2x6 connector (550mm) x 1pcs
  • 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs
  • 4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs
  • 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs
  • 4 x Y Type SATA connector (400mm-125mm*2) x1pcs
  • USB*9pin - USB*9pin connector (350mm) x 1pcs
  • USB*9pin -Type A connector (550mm) x 1pcs
• Dimension: (D)182 mm x (W)86 mm x (H)150 mm
• Dimension (inch)
  • Item Dimension: 9.53*6.93*4.02
  • Package Dimension: 20.67*14.65*10.31
• Item Weight: 3.86 lbs

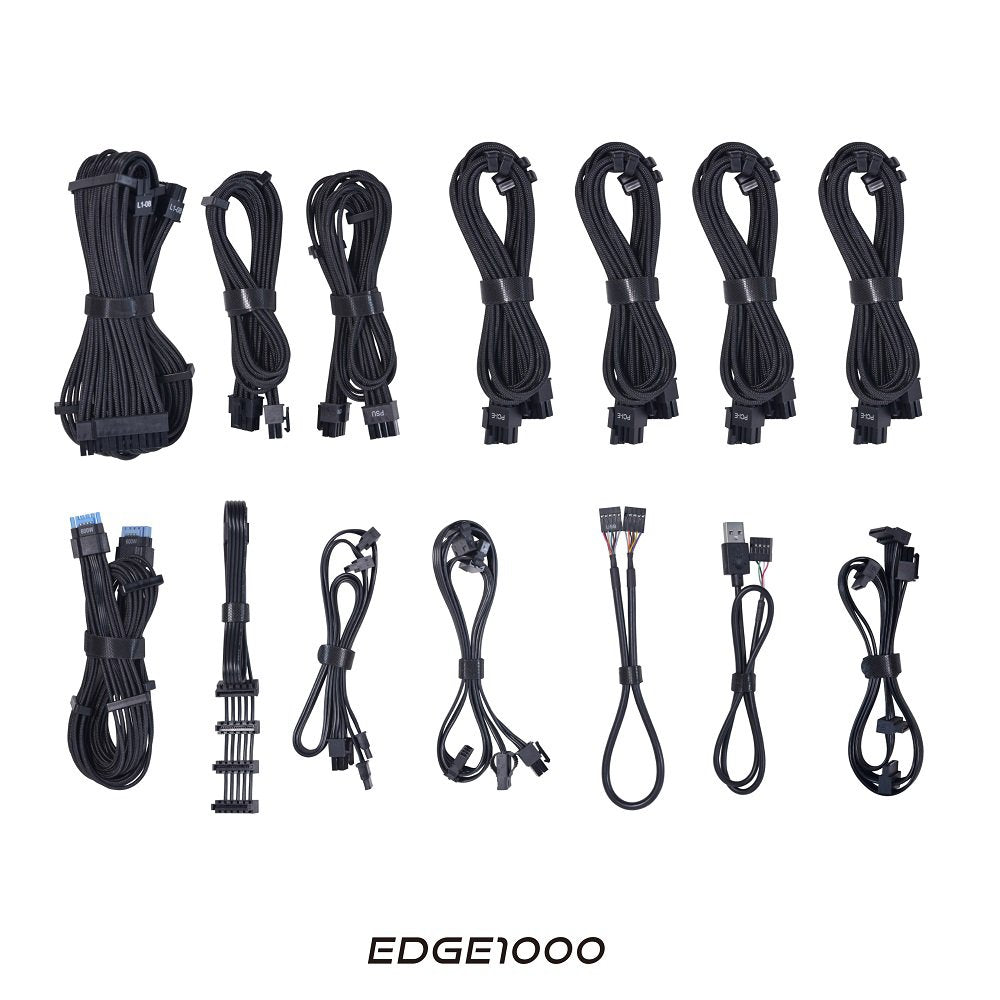

• Package Contents
  • power supply x1
  • 1 x 24/20-Pin motherboard connector (500mm) x1pcs
  • 1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs
  • 1 x 8/6+2 Pin PCle connector (550mm) x4pcs
  • 1 x 12V-2x6 connector (550mm) x 1pcs
  • 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs
  • 4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs
  • 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs
  • 4 x Y Type SATA connector (400mm-125mm*2) x1pcs
  • USB*9pin - USB*9pin connector (350mm) x 1pcs
  • USB*9pin -Type A connector (550mm) x 1pcs
