MONTECH APX Series APX 550W - Power supply (internal)

MONTECH APX Series APX 550W - Power supply (internal)

$48.20
$48.20
Sale Sold out
  • Product Name: APX 550W
  • ATX Version: Intel ATX12V
  • PFC: Active PFC
  • Input Voltage: 100-240Vac
  • Input Current: 12A
  • Input Frequency: 50-60Hz
  • Dimensions (L*W*H): 150*140*86mm
  • Fan Size: 120mm
  • Typical Efficiency: 80%
  • Operating Temperature: 0°C - 45°C
  • Protections: OVP / OPP / OTP / SCP / OCP/ UVP
  • Regulatory: cTUVus / TUV / CB / CE / RoHS / FCC-ICES / EAC / RCM / BSMI
  • Connectors
    • M/B 20+4 Pin: 1
    • CPU 4+4 Pin: 2
    • PCIE 6+2 Pin: 2
    • SATA: 6
    • Molex 4 Pin: 3

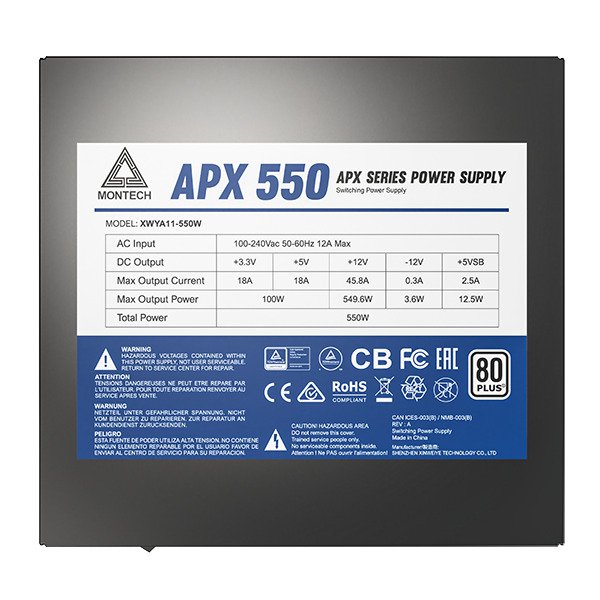

  • AC Input: 100-240Vac 50-60Hz 12A MAX
  • DC Output: +3.3V; +5V; +12V; -12V; +5VSB
  • Max Output Current: 18A; 18A; 45.8A; 0.3A; 2.5A
  • Max Output Power: 100W; 549.6W; 3.6W; 12.5W
  • Total Power: 550W
