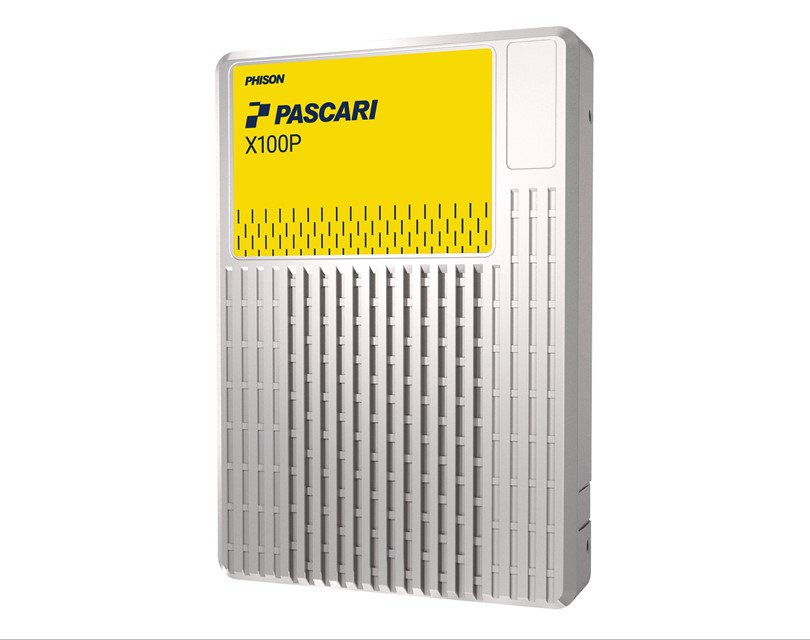

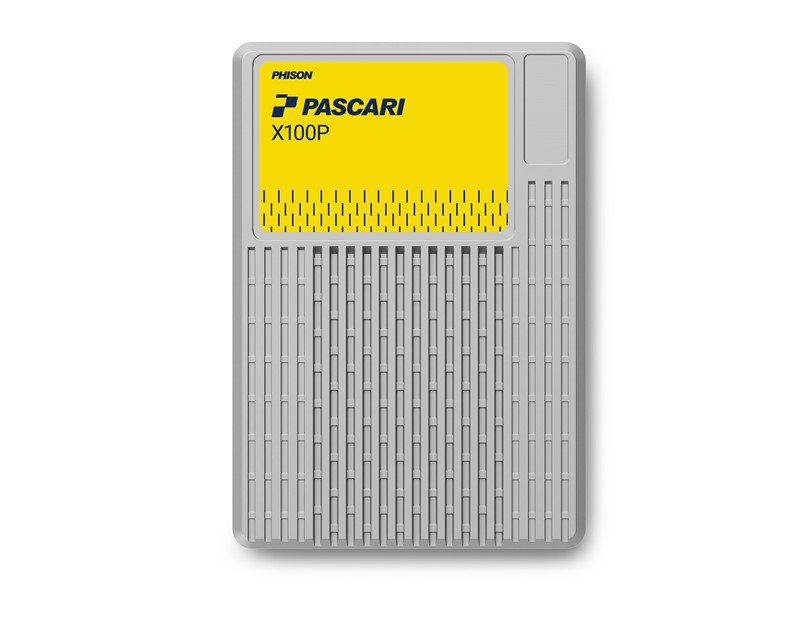

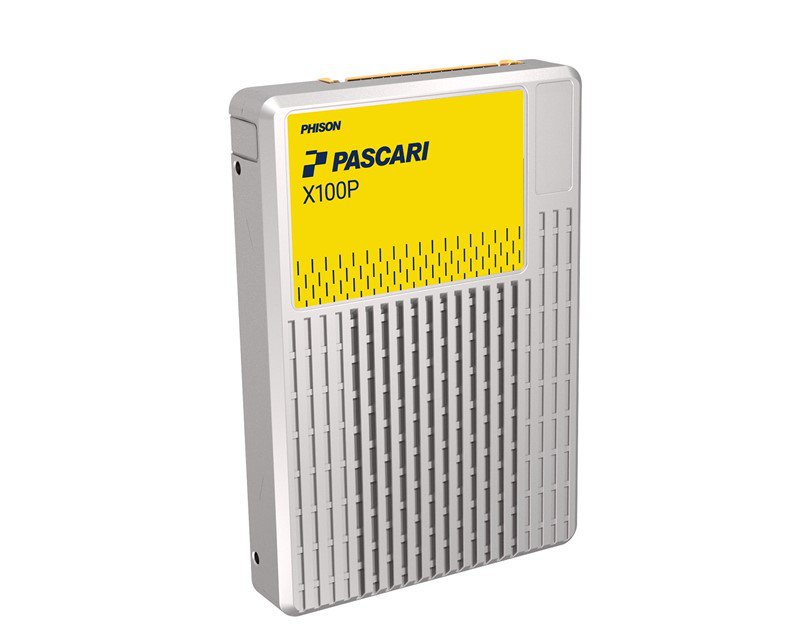

Phison Pascari X100P 3.84 TB SSD

Phison Pascari X100P XP106H013T84P024T0900 3840 GB U.2 Single Port PCIe Gen4x4 Non-Opal Security SSD

Technical Information:

• Capacities: 3840 GB
• Form Factor: U.2
• Interface: Single Port
• Security: Non-Opal
• PCIe Interface
  • PCIe Gen4x4
  • Single Port x4 lanes
  • PCIe AER (Advanced Error Reporting)

Performance

• Maximum Sequential Read / Write: 7000MB/s / 6700MB/s
• Maximum Random Read / Write: 1600KIOPS / 170KIOPS
• Sustained Random Read / Write Latency(µs): 100/15(QD=1, Workers=1); 110/300(QD=32, Workers=1); 450/4000(QD=64, Workers=8)
• IOPS Consistency: 95%
• QoS (Quality of Service, 99%)Read / Write: 100/12(QD=1, Workers=1); 140/200(QD=32 Workers=1); 600/3200(QD=64, Workers=8)
• DWPD: 1DWPD
• TBW: 7008 TB
• LBAF: 512 / 512+ 8 / 4K / 4K + 8 / 4K + 64 Bytes
• MTBF: 2,500,000 hours
• UBER(Uncorrectable Bit Error Rates): < 1 sector per 10^18 bits read
• Advanced Flash Management
  • ECC
  • Static and Dynamic Wear Leveling
  • Bad Block Management
  • Deallocate (TRIM) Command
  • SMART
  • Over-Provision
  • Firmware Upgrade
• Temperature Range
  • Operation: 0°C - 70°C with specified airflow
  • Storage: -40°C - 85°C

RoHS compliant

• Enterprise Features Support List
  • Namespace
  • Single Port
  • Reservation
  • Metadata Protection Thermal throttling
  • Power Loss Protection

Hardware AES-XTS 256-bit Encryption

Support SMBus

Support NVMe-MI (Management Interface)

• Data Retention: 3 months
• Physical Dimension: U.2 100(L)x70(W)x15(H) mm
• Compliance
  • PCIe Express Base 4.0
  • NVMe 1.4
  • NVMe Management Interface Rev 1.1
