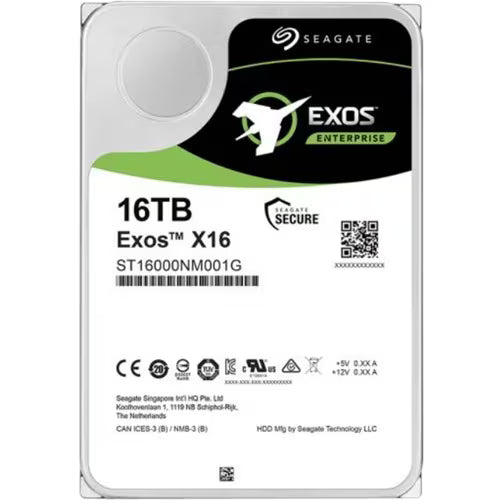

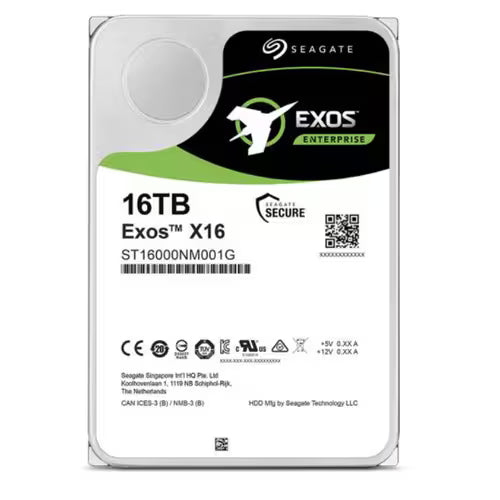

Seagate Exos X16 16TB 3.5" SATA III 7200RPM Hot-Plug Enterprise Hard Drive (ST16000NM001G)

Seagate Exos X16 16TB 3.5" SATA III Enterprise Hard Drive

The Seagate Exos X16 is the flagship of Seagate's X-class enterprise lineup, engineered for hyperscale cloud datacenters and massive scale-out storage environments. This SATA III (6 Gb/s) variant delivers the highest capacity and performance in the Exos fleet, combining 16TB of storage, a 7200 RPM spindle, and a 256MB cache buffer tuned for large sequential data transfers and low latency at hyperscale.

Built with a helium-sealed design using next-generation side-sealing weld technology, the Exos X16 delivers lower power consumption (10W operating), reduced weight, and a lower total cost of ownership compared to air-filled drives. Digital environmental sensors monitor internal drive conditions in real time, while PowerBalance™ optimizes Watts/TB for maximum rack efficiency. Hot-plug capable with 512e/4Kn format flexibility, backed by a 2.5 million hour MTBF and 5-year warranty.

Key Features

• 16TB Capacity — 33% more petabytes per rack vs. previous generation
• Helium-Sealed Design — Lower power, lower weight, and lower TCO vs. air-filled drives
• 2.5 Million Hour MTBF — Industry-leading enterprise reliability rating
• Hot-Plug Capable — Swap drives without powering down the system
• PowerBalance™ — Optimizes Watts/TB for maximum rack power efficiency
• Digital Environmental Sensors — Real-time monitoring of internal drive conditions
• 512e/4Kn Format — Flexible sector format for broad compatibility
• Seagate Secure™ — Safe, fast, and affordable drive retirement and data protection
• SATA III (6 Gb/s) — Hyperscale-tuned for large data transfers and low latency
• 5-Year Warranty — Seagate's enterprise-grade coverage

Technical Specifications

• Capacity: 16TB
• Interface: SATA III (SATA/600)
• Form Factor: 3.5"
• Spindle Speed: 7200 RPM
• Cache Buffer: 256MB
• Disk Format: 512e / 4Kn
• Hot Pluggable: Yes
• Operating Power: 10W
• MTBF: 2,500,000 Hours
• Weight: 1.48 lb
• Dimensions: 5.8" x 4" x 1"
• Part Number: ST16000NM001G
• Country of Origin: Thailand
• Warranty: 5 Years
• Device Support: Storage System, Server, Hyperscale Datacenter
