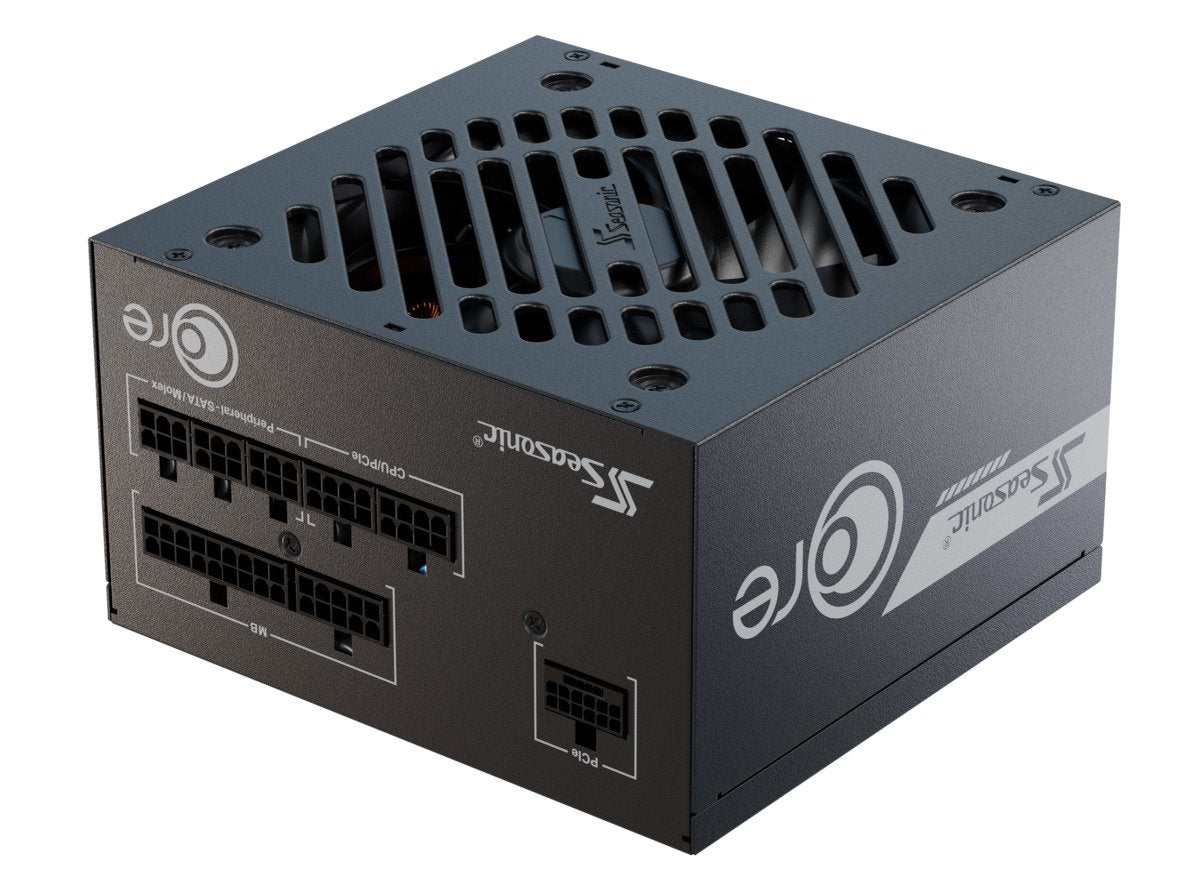

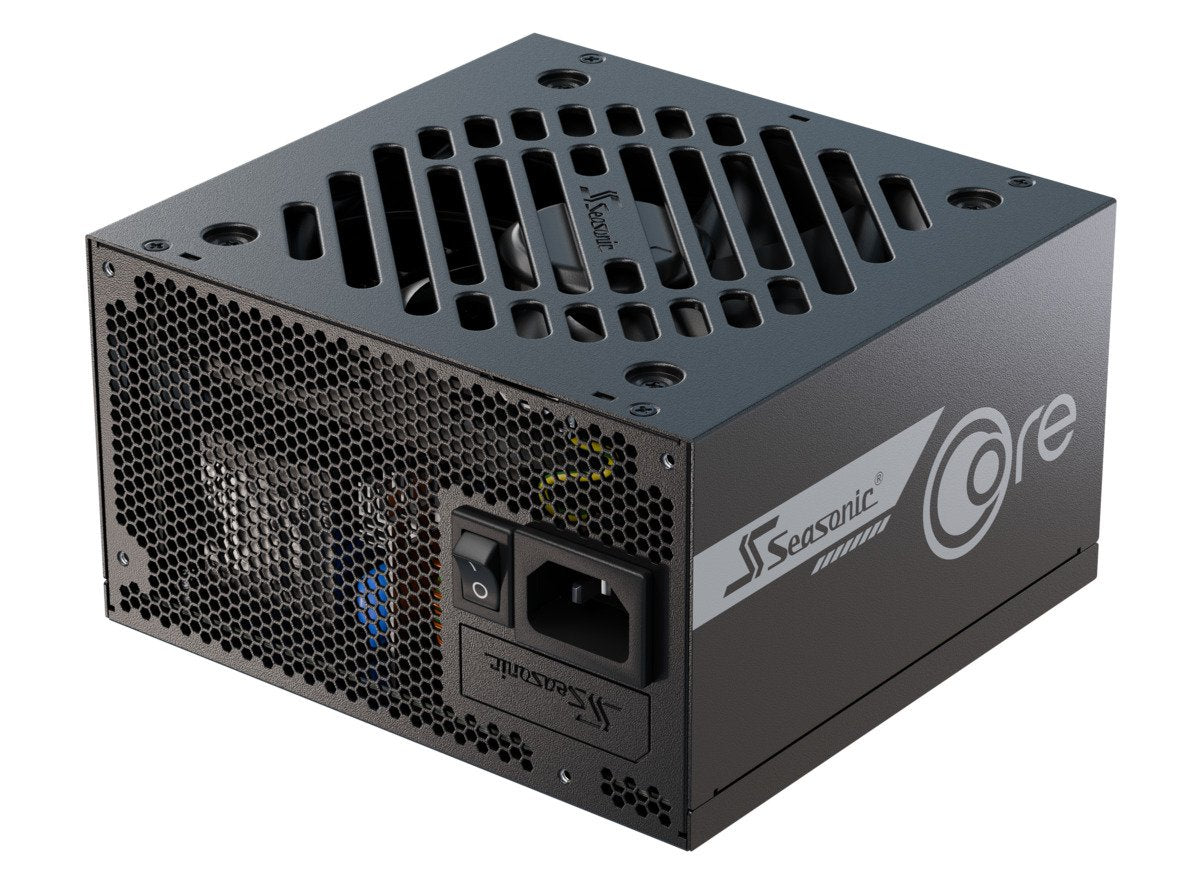

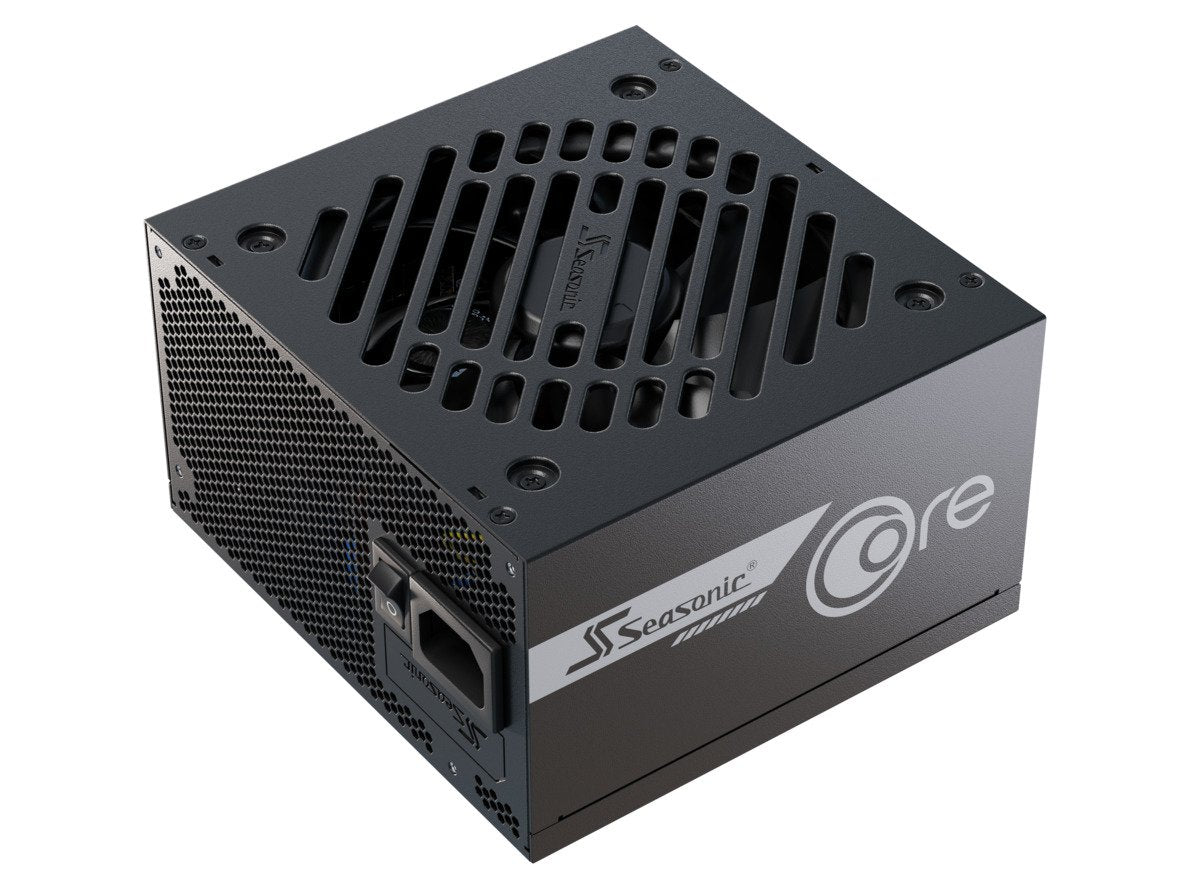

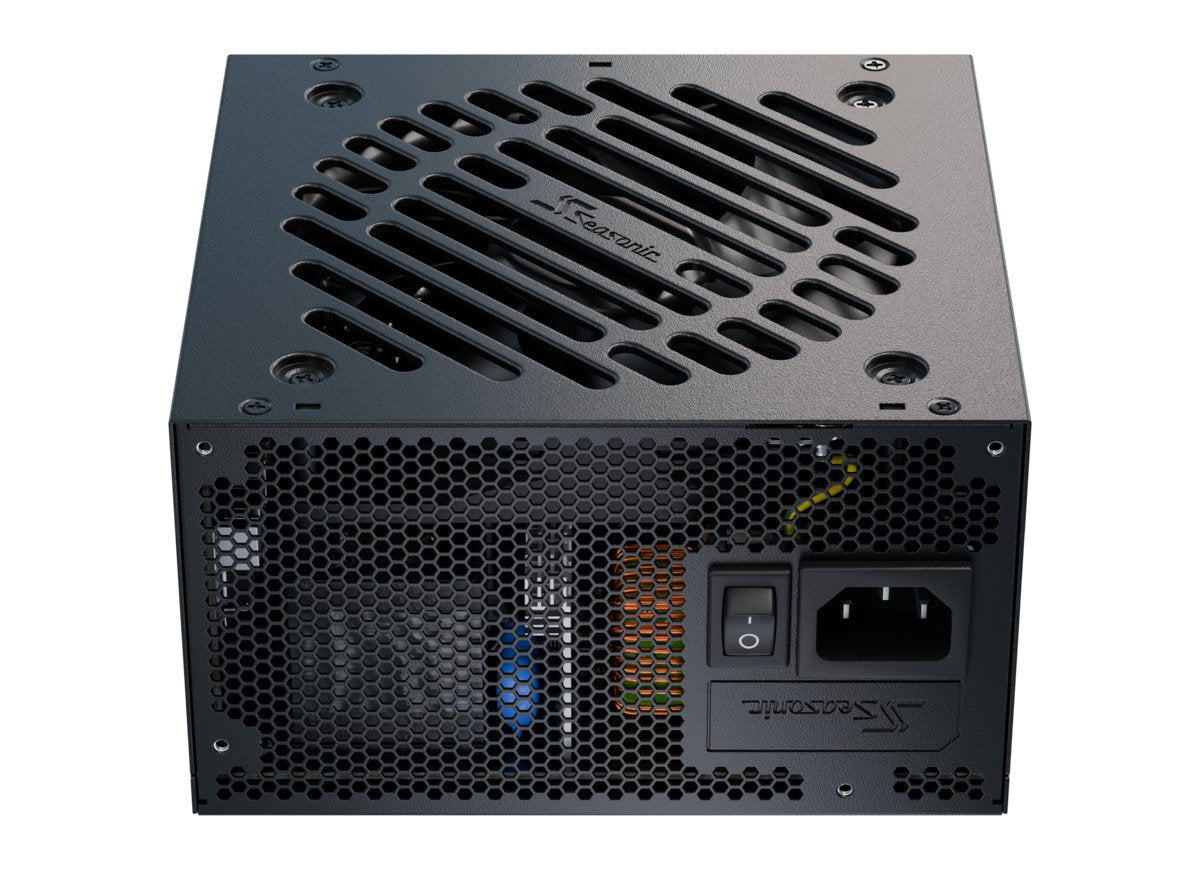

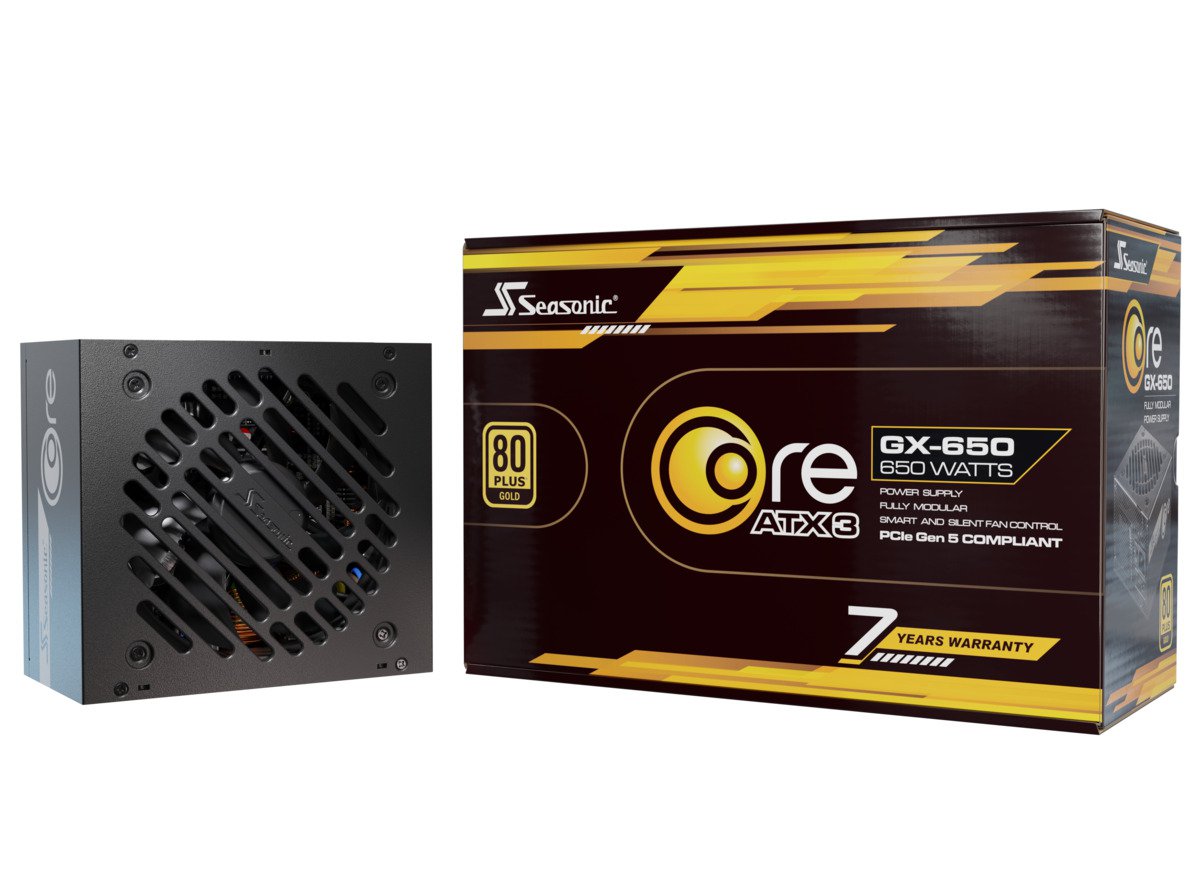

SEASONIC CORE V2 GX-650 (ATX3) - 650W Power Supply

SEASONIC CORE V2 GX-650 (ATX3) - 650W - 80+ Gold - Full-Modular - ATX Form Factor - Premium Capacitor - 7 Year Warranty - Nvidia RTX 30/40 Super & AMD GPU Compatible (SRP-CGX651-A5A32SF)

Technical Information:

• 80PLUS: Gold
• Form Factor: ATX/EPS
• Dimensions: 140 x 150 x 86 mm
• Fan Information
  • Fan Size: 120 mm
  • Fan Control: Smart and Silent Fan Control
  • Fan Bearing: Hydro Dynamic Bearing
  • Life Expectancy: 25,000 hours at 40 °C, 15 % - 65 % RH
• Cable Information

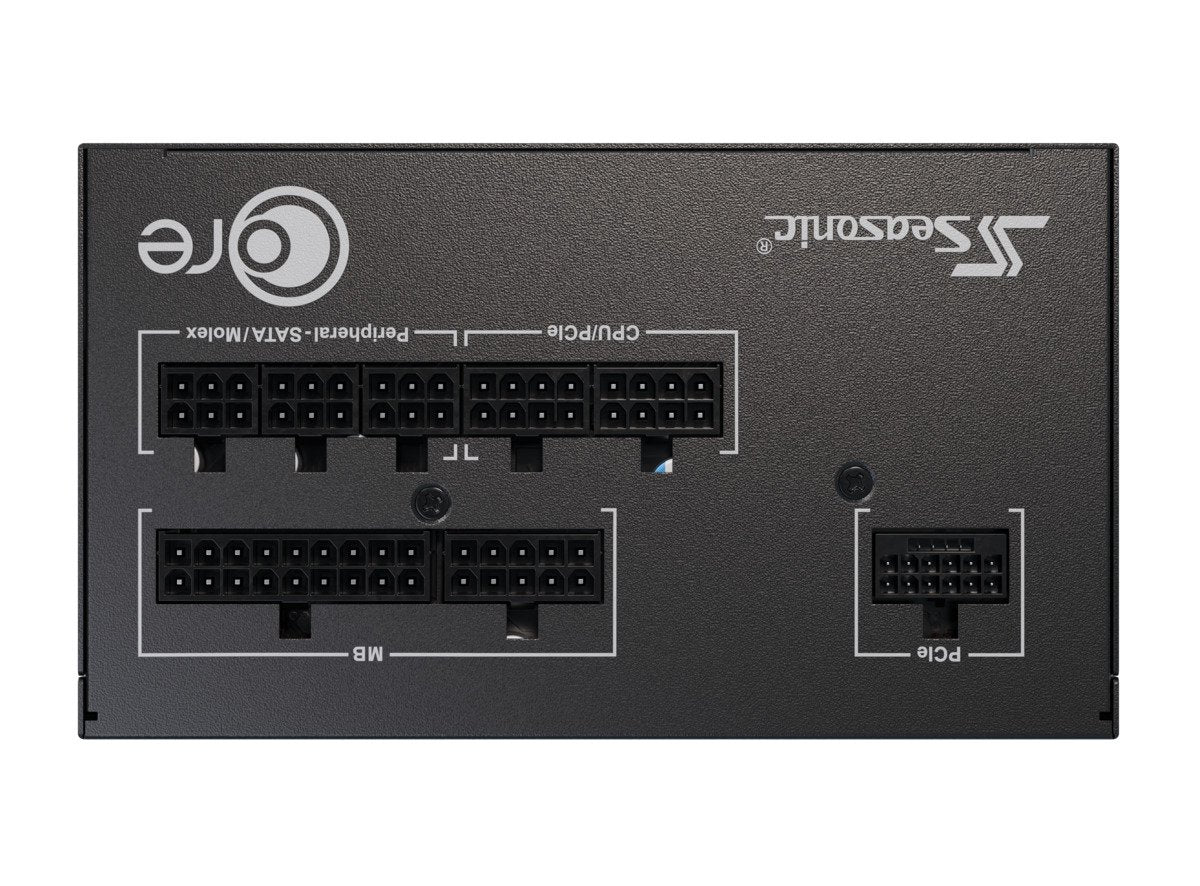

  • Modularity: Fully Modular
  • Cable type: Individual Black Cables with Braided Pattern
• Electrical Features
  • Operating Temperature: 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
  • MTBF @ 25 °C, excl. fan: 100,000 hours
  • AC Input: Full Range
  • Protection: OPP, OCP, OTP, OVP, SCP, UVP
• Safety and Environmental
  • Safety and EMC: BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA
  • Environmental Compliance: Energy Star, ErP Lot 6, REACH, RoHS, WEEE
• AC Input
  • 100 V - 240 V
  • 9 - 4.5 A
  • 50 Hz - 60 Hz
• DC Output
  • Rail: +3.3 V;+5 V;+12 V;-12 V;+5 VSB
  • Maximum Power: 20 A;20 A: ;54 A;0.3 A;3 A

100 W;648 W;3.6 W;15 W

• Total continuous power: 650 W
