Super Flower Leadex VII XG 1300W 80+ Gold White PSU

Super Flower Leadex VII XG 1300W 80+ Gold White, Cybenetics Platinum, Full Modular, ATX 3.1 & PCIe 5.0, 12VHPWR Cable (2x8pin-16pin native cables), Power Supply, FDB Fan, SF-1300F14XG, White version

Technical Information:

• Features
  • 80 PLUS Gold Certified, 87% 90% 87% Efficiency At 20% 50% 100% Rated Load
  • Tight Voltage Regulation (12 V, 5 V and 3.3 V) [+/- 0.5%]
  • Cybenetics Platinum Certified, 89% & <91% overall efficiency (115 INPUT), 91% & <93% overall efficiency (230 INPUT)
  • Intel ATX 3.0 Certified: Compliant with ATX 3.1 standard & PCIe Gen 5 ready and 16-Pin PCIe Gen 5 Cable (12V-2x6), resisting transient power spikes
  • Full modular design with all ribbon cables to maximize flexibility

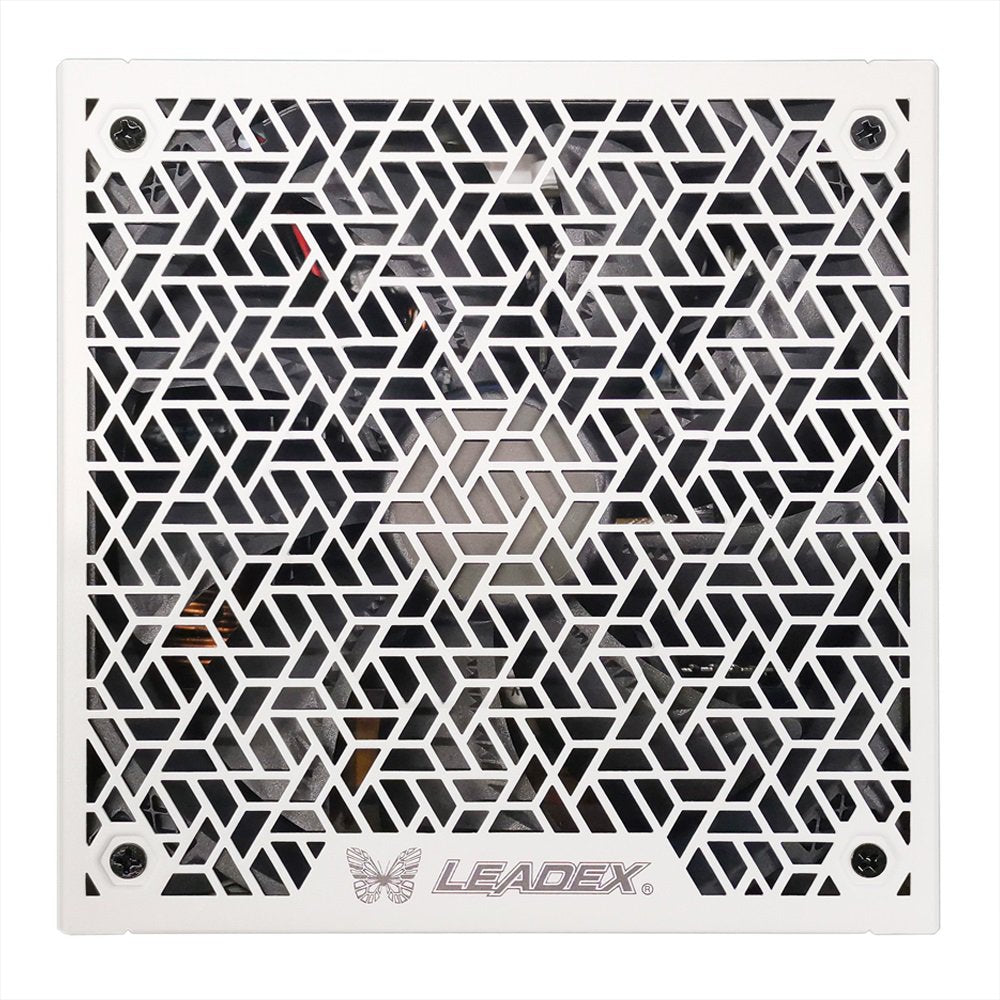

  • 140mm Fluid Dynamic Bearing Fan
  • 100% Japanese 105°C Capacitors
  • Zero RPM with fan ECO Mode
  • Full-Bridge & Resonant LLC Topology with DC-to-DC Conversion
• Output Capacity: 1300W
• 80PLUS: Gold
• Color: White
• Transform Efficiency: 20%: 87%; 50%: 90%; 100%: 87% (115V Internal Gold) Efficiency
• Cybernetics Certified: Efficiency: Platinum / Efficiency 230V: Platinum
• Intel Power Design Guide: EPS Ver. 2.92 & ATX 3.1
• AC Input | Frequency: 100V-240V | 60 / 50Hz, Full Range APFC

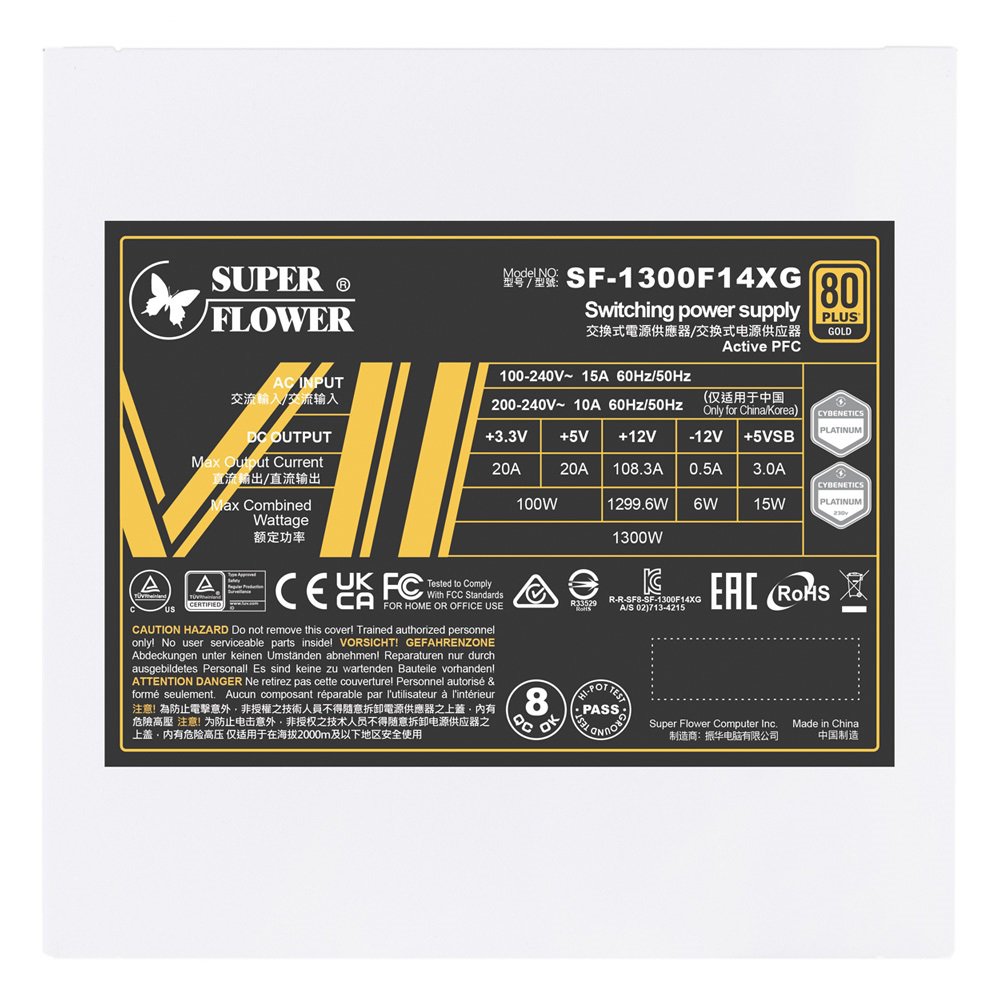

• DC Output: +3.3V 20A; +5V 20A; +12V 108.3A; -12V 0.5A; +5VSB 3.0A
• Fan Size: 14cm FDB FAN
• Protection: OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP
• Safety Certificates: cTÜVus / TÜV / CB / CE / FCC / UKCA / RCM / BSMI / RoHS / KCC / EAC / CCC
• Temperature: Passed 50 °C Hot Testing

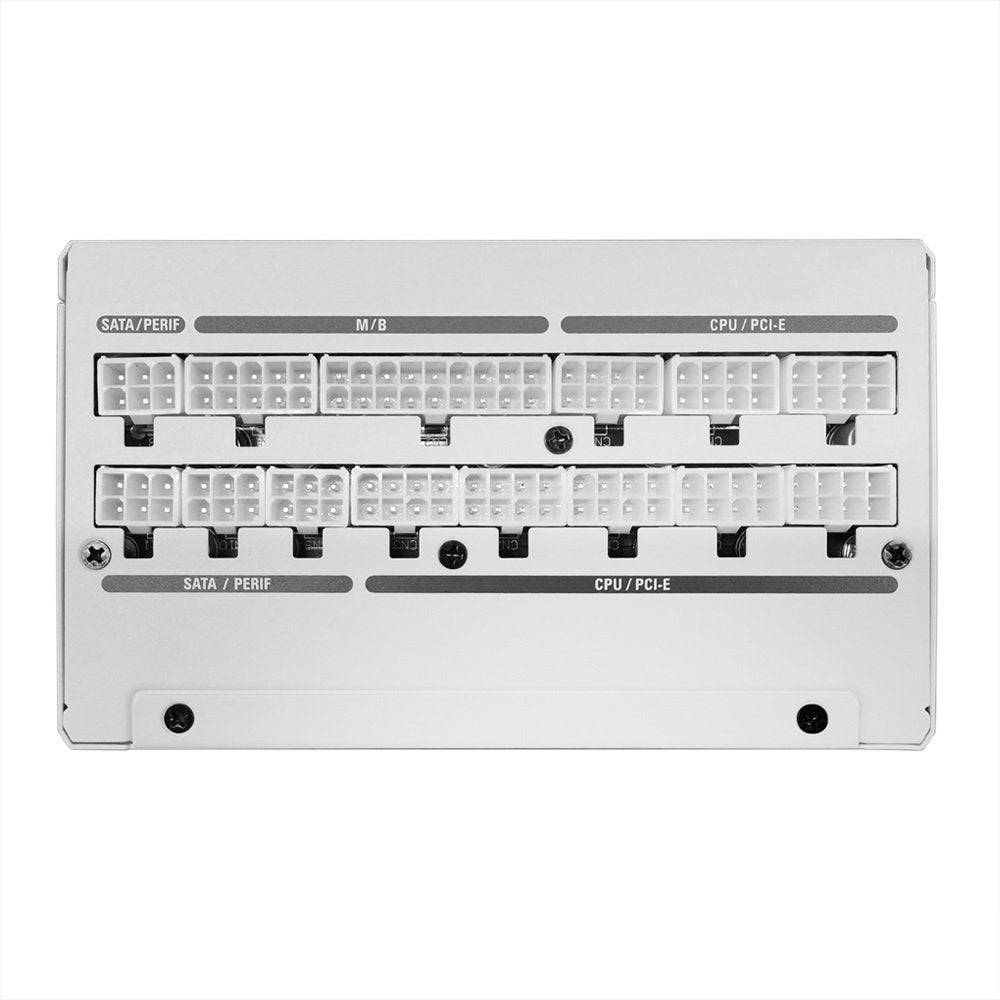

• PSU Connector
  • 20+4 Pin: One Cable (600mm)
  • 8(4+4) Pin CPU: Two Cables (700mm)
  • PCI 6+2 Pin: Four Cables (700mm)
  • 4 SATA: Three Cables (550+130+130+130mm)
  • 4 Molex: One Cable (550+150+150+150mm)
  • PCIe 16 Pin: One Cable (700mm)
• Dimension: 150mm(L) x 150mm(W) x 86mm(H)
