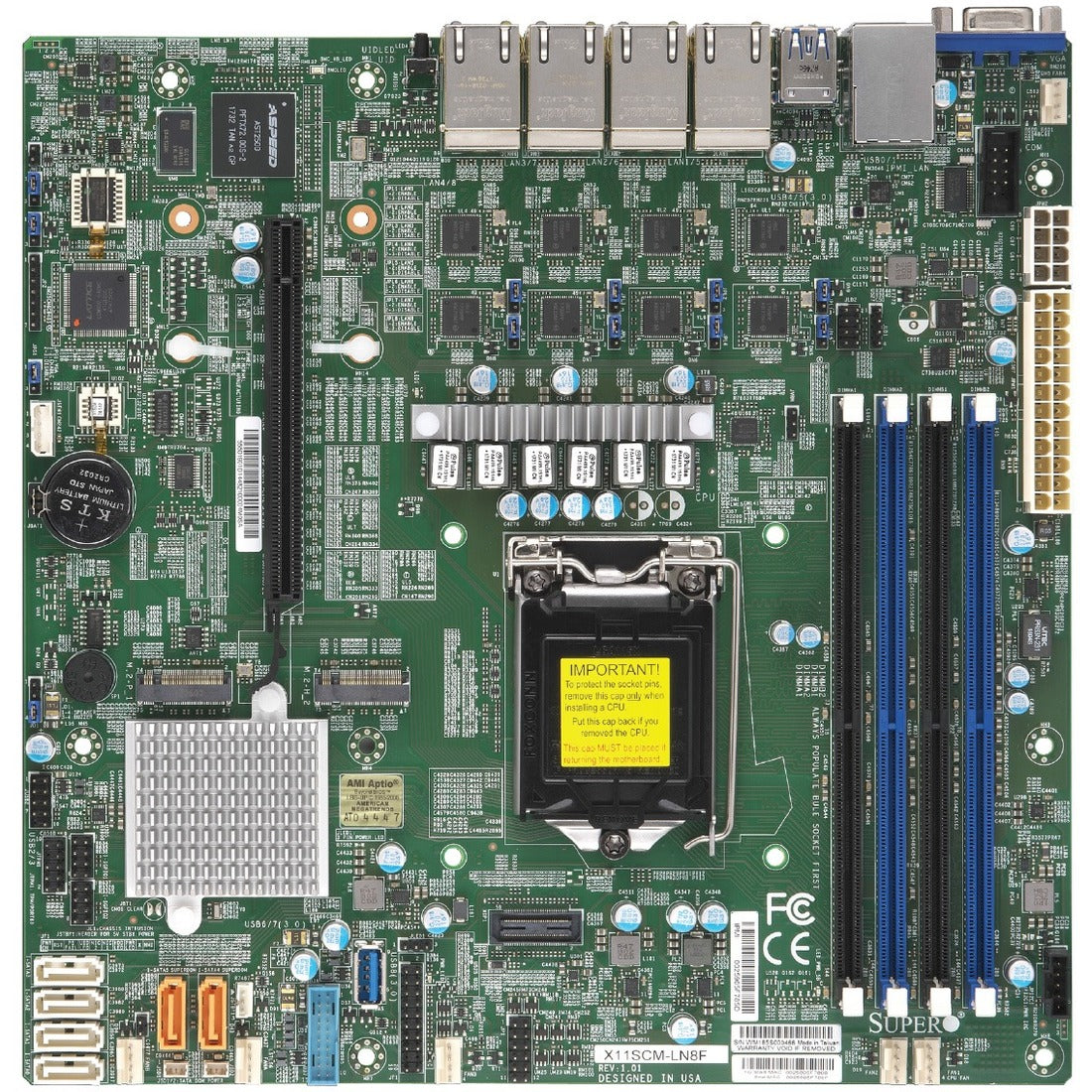

Supermicro X11SCM-LN8F Server Motherboard - Intel C246 Chipset - Socket H4 LGA-1151 - Micro ATX

• Chipset Manufacturer: Intel
• Chipset Model: C246
• Total Processor Supported: 1
• Processor Socket: Socket H4 LGA-1151
• Processor Supported
  • Celeron
  • Pentium
  • Xeon
  • Core i3
• Number of Memory Slots: 4
• Memory Form Factor
  • DIMM
  • UDIMM
• Maximum Memory Supported: 128 GB
• Memory Technology: DDR4 SDRAM
• Memory Speed Supported
  • 2666 MHz
  • 2400 MHz
  • 2133 MHz
• Controller Type: Serial ATA/600
• RAID Supported: Yes
• RAID Levels
  • 0
  • 1
  • 5
  • 10
• Onboard Video: On-board Video Chipset
• Graphics Controller Model: AST2500
• Gigabit Ethernet: Yes
• Total Number of Expansion Slots: 1
• Total Number of PCI Express Slots: 1
• Number of PCI Express x16 Slots: 1
• Total Number of USB Ports: 4
• Number of USB 2.0 Ports: 2
• Number of USB 3.1 Ports: 2
• VGA: Yes
• Number of Network (RJ-45) Ports: 8
• Number of SATA Interfaces: 6
• Number of M.2 Interfaces: 1
• Total Number of Onboard USB Ports: 5
• Number of Onboard USB 2.0 Ports: 2
• Number of Onboard USB 3.1 Ports: 3
• Form Factor: Micro ATX
• Width: 9.6"
• Depth: 9.6"
• Package Contents
  • X11SCM-LN8F Server Motherboard
  • 1 x Motherboard Quick Reference Guide
  • 6 x I/O Cables
  • 1 x STD I/O Shield for X11SCM-LN8F with EMI Gasket
• Compatibility

Supermicro Chassis:

• SC813MFTQC-350CB2
• SC813MFTQC-R407CB
• SC512F-350B1
• SC515-350
• SC515-R407
• SC514-R407C
• SC113MTQ-R400C
• 1U Heatsink: SNK-P0046P
• SC825TQC-R740LPB
• 2U Heatsink:SNK-P0046A4

Supermicro Server:

• • SYS-1019C-FHTN8
• Environmentally Friendly: Yes
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)
