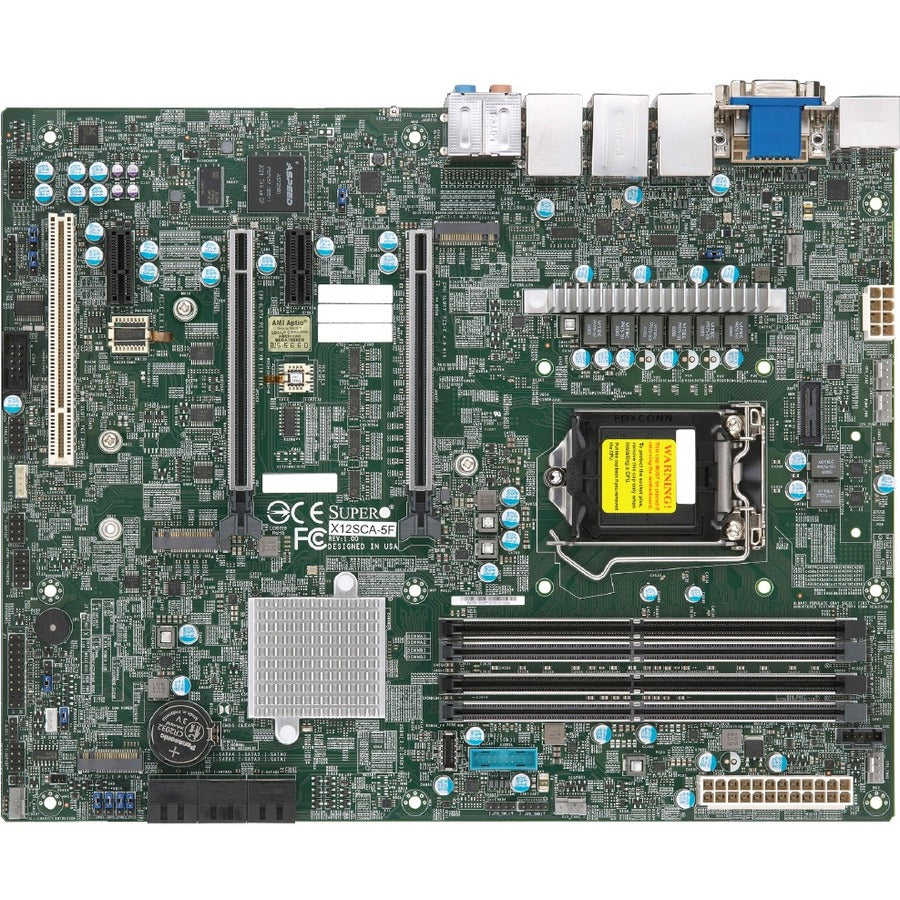

Supermicro X12SCA-5F Workstation Motherboard - Intel W480 Chipset - Socket LGA-1200 - ATX

• Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
• DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
• Supported 0 RAID levels provide data reliability and fault tolerance
• DisplayPort host interface allows audio and video signals to be shared in a single cable transmission to ensure maximum efficiency
• Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX workstation motherboard

Technical Information

• Chipset Manufacturer: Intel
• Chipset Model: W480
• Total Processor Supported: 1
• Processor Socket: Socket LGA-1200
• Processor Supported
  • Xeon
  • Core i3
  • Core i5
  • Core i7
  • Core i9
  • Celeron
  • Pentium
• Number of Memory Slots: 4
• Memory Form Factor
  • DIMM
  • UDIMM
• Maximum Memory Supported: 128 GB
• Memory Technology: DDR4 SDRAM
• Memory Speed Supported: 3200 MHz
• Controller Type: Serial ATA/600
• RAID Supported: Yes
• RAID Levels
  • 0
  • 1
  • 5
  • 10
• Onboard Video: On-board Video Chipset
• Graphics Controller Model: AST2500
• Audio Channels: 7.1
• Gigabit Ethernet: Yes
• 2.5Gigabit Ethernet: Yes
• Total Number of Expansion Slots: 5
• Total Number of PCI Express Slots: 4
• Number of PCI Express x1 Slots: 2
• Number of PCI Express x16 Slots: 2
• Total Number of USB Ports: 5
• Number of USB 3.2 Ports: 1
• Number of USB 3.2 Gen 2 Type-A Ports: 4
• VGA: Yes
• HDMI: Yes
• DisplayPort: Yes
• DVI: Yes
• Number of Network (RJ-45) Ports: 3
• Number of SATA Interfaces: 6
• Number of M.2 Interfaces: 2
• Total Number of Onboard USB Ports: 5
• Number of Onboard USB 2.0 Ports: 2
• Number of Onboard USB 3.2 Ports: 3
• Form Factor: ATX
