HPE ProLiant MicroServer Gen11

HPE SMART CHOICE ProLiant MicroServer Gen11 Ultra Micro Tower Server - 1 x Intel Pentium Gold G7400 3.7 GHz - 16 GB RAM - 1 TB HDD - Serial ATA/600 Controller - Intel C262 Chip - 1 Processor Support - 128 GB RAM Support - DDR5 SDRAM - Gigabit Ethernet - 4 x Total Bay(s) - 4 x LFF Bay(s) - 1 x 180 W

Are you a small office or small business with branch offices looking for a budget friendly server that can fit almost anywhere? The HPE ProLiant MicroServer Gen11 delivers an affordable, compact yet powerful entry level server that you can customize for on-premises or for hybrid cloud possibilities while still meeting the enterprise-class performance, security, reliability, and expandability standards of the rest of the HPE ProLiant enterprise class server portfolio.

With a mini tower design, place it flat or vertically or wall mounted, depending on customer environment. The latest Intel® Xeon® E and Pentium® processors supported to deliver compute performance, increased memory capacity, as well as security and remote management into the server with HPE iLO silicon root of trust. The affordable starting price makes the HPE ProLiant MicroServer Gen11 a good value that has the networking and performance capacity to grow with your business as your needs and budget change over time.

• 1 processors supported for faster processing and improved access to data, optimizing performance under heavy loads
• With 16 GB memory, users can multitask between applications smoothly, preserving responsiveness and efficiency
• 1 x 180 W power supply unit (PSU) meets system power demands for stable and uninterrupted operations
• 1 TB HDD ensures enough room for multimedia and documents, so you can store and access everything without delays
• Pentium Gold processor ensures timely, efficient performance for demanding applications
• Ultra Micro Tower form factor delivers added reliability and structural integrity, supporting consistent performance in enterprise setups
• RAID provides redundancy to safeguard data during drive failures, ensuring maximum dependability and uninterrupted operations
• DDR5 SDRAM memory technology enables efficient data movement across CPU cycles, improving throughput for demanding server workloads
• Gigabit Ethernet is ideal for frequent large file transfers, such as backups and replication, ensuring smooth and efficient operations
• 4 Network (RJ-45) Ports eliminate the need for additional wiring, streamlining deployment and reducing installation costs

Technical Information:

Networking

• Gigabit Ethernet

• 4× RJ‑45 network ports

• Remote management supported (HPE iLO 6)

Warranty

• 1‑year parts

• 1‑year labor

• 1‑year onsite support with next‑business‑day response

Chipset

• Intel C262 chipset

Storage

• Total Storage: 1 TB HDD

• Interface: SATA 6Gb/s (Serial ATA/600)

• RAID support: Yes

Included in Box

• ProLiant MicroServer Gen11

• 180W external power adapter

Security Features

• UEFI Secure Boot & Secure Start

• Silicon Root of Trust

• FIPS 140‑2 validation

• Common Criteria certification

• PCI DSS configurable

• Firmware rollback capability

• Secure erase

• TPM 2.0 (Gen 11)

• Front bezel lock

• Padlock slot

• Kensington lock slot

• Power cord clip

• Chassis intrusion protection

• Environmentally compliant (WEEE)

Physical

• Form Factor: Ultra Micro Tower

• Height: 6.1"

• Width: 10.3"

• Depth: 9.8"

• Weight: 17.57 lb

• Bays:

  • 4× 3.5" LFF bays

  • 4 total expansion bays

• Expansion Slots:

  • 1× PCIe 5.0

  • 1× PCIe 4.0

• Hot‑swappable bays: No

Memory

• Standard Memory: 16 GB

• Max Memory: 128 GB

• Memory Type: DDR5 ECC (Unbuffered)

• Total Slots: 4

Operating System Support

• Red Hat Enterprise Linux 8.8 / 9.2

• Ubuntu 20.04 LTS / 22.04 LTS

• Windows Server 2022 / 2025

Processor

• CPU: Intel Pentium Gold G7400

• Cores: 2 (Dual‑core)

• Speed: 3.70 GHz

• Cache: 6 MB

• Processors Installed: 1

• Processors Supported: 1

Power

• Input Voltage: 120V / 230V AC

• Power Supply: 180W external AC adapter

• Redundancy: No

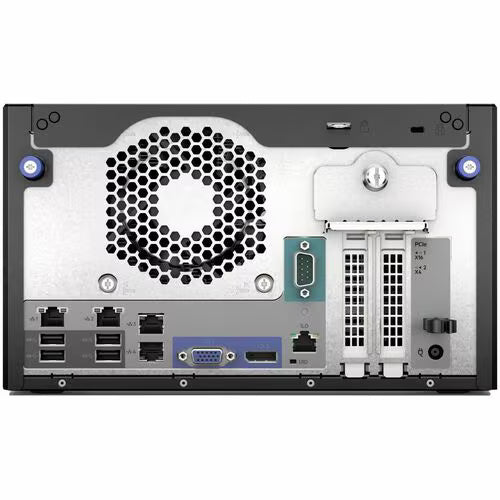

Ports

• VGA: Yes

• DisplayPort: Yes

• USB Ports: 6

• Network Ports: 4× RJ‑45

• Remote management: Yes
